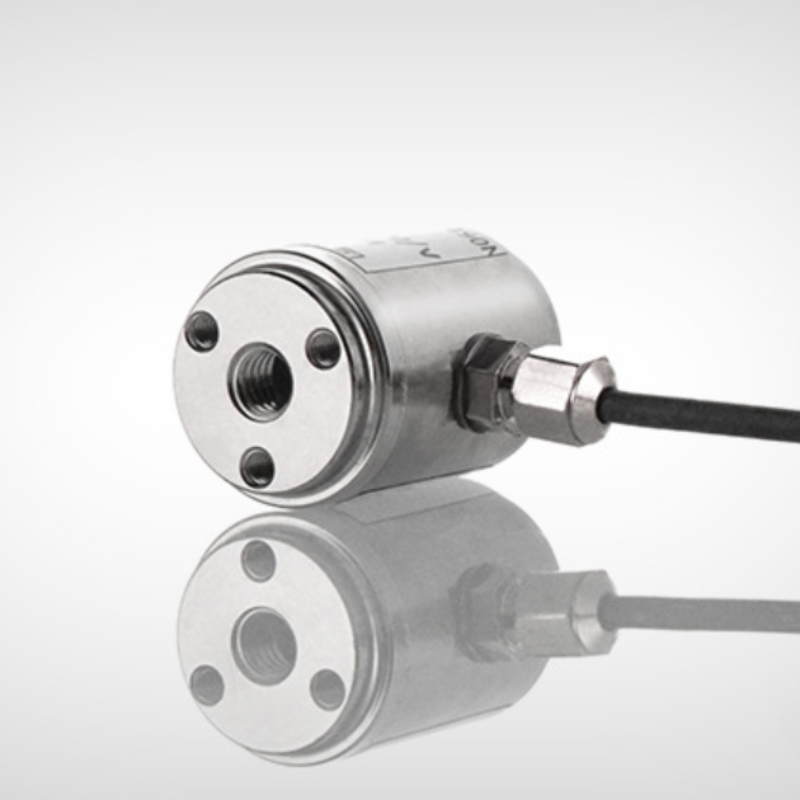

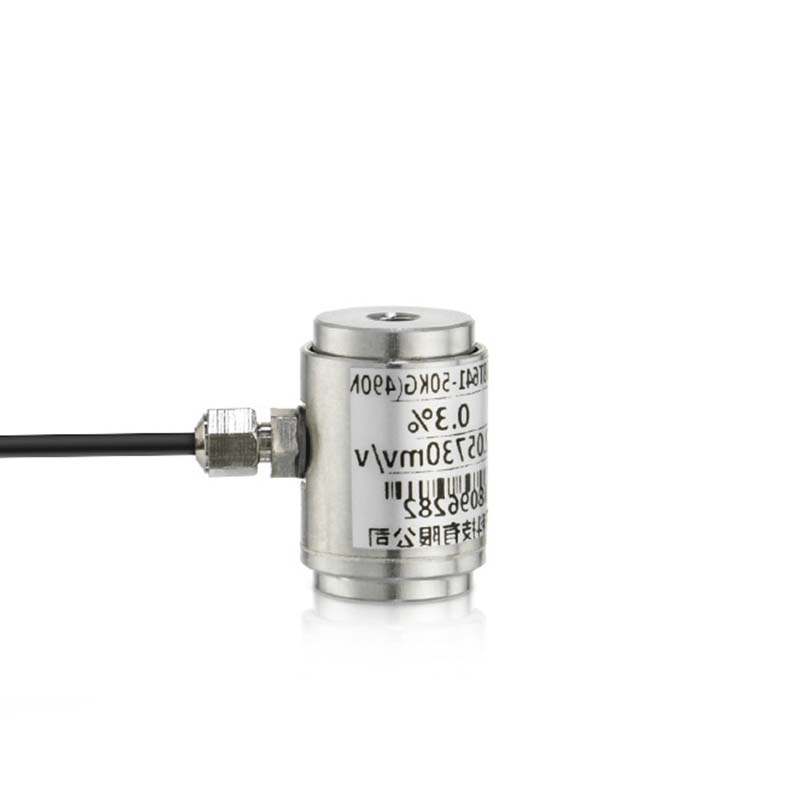

The AM43A model load cell, the weight range is 10-500N, 17-4PH Stainless steel material, Measuring tension and compression, The micro size, low altitude, the deformation is small two-way cylindrical shape.
| Accuracy | ±0.05%F.S |
|---|---|
| Model | AM43A |
| Capacity | 20~500N |
| Certificate | RoHS, CE |
| Creep | ±0.05%F.S/3min |
| Material | Stainless steel |
| Sensitivity | 2.0±10%mV/V |

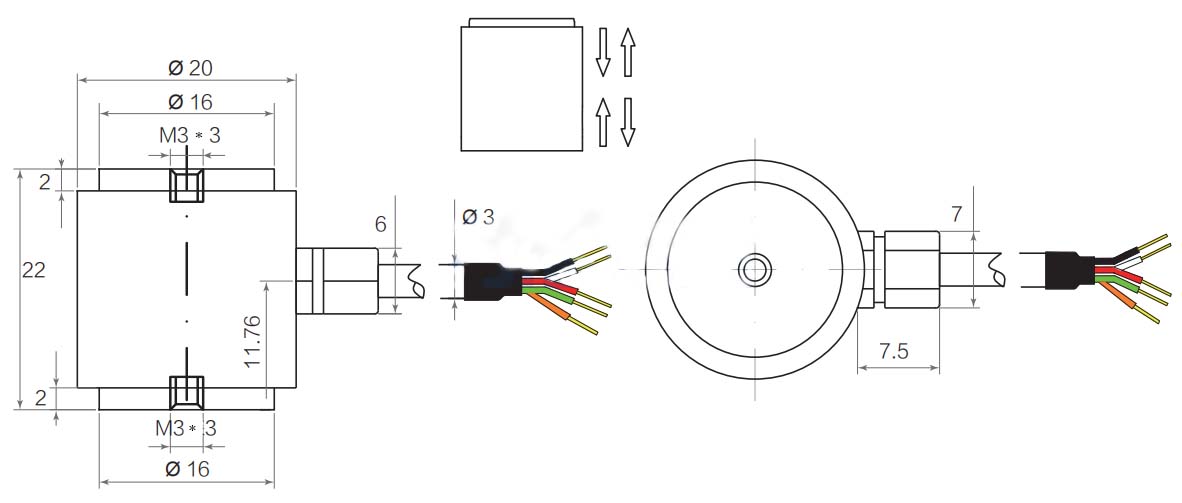

| Size | dia15*22mm |
The AM43A model load cell, the weight range is 10-500N, 17-4PH Stainless steel material, Measuring tension and compression, The micro size, low altitude, the deformation is small two-way cylindrical shape.
Mainly for the push, pull,all kinds of industrial weighing system and Cylindrical miniature tension pressure sensor tension thrust force measurement automatic manipulator.
| Accuracy | ±0.05%F.S |
|---|---|
| Model | AM43A |
| Capacity | 20~500N |
| Certificate | RoHS, CE |
| Creep | ±0.05%F.S/3min |
| Material | Stainless steel |
| Sensitivity | 2.0±10%mV/V |
| Size | dia15*22mm |
