Description
Features:

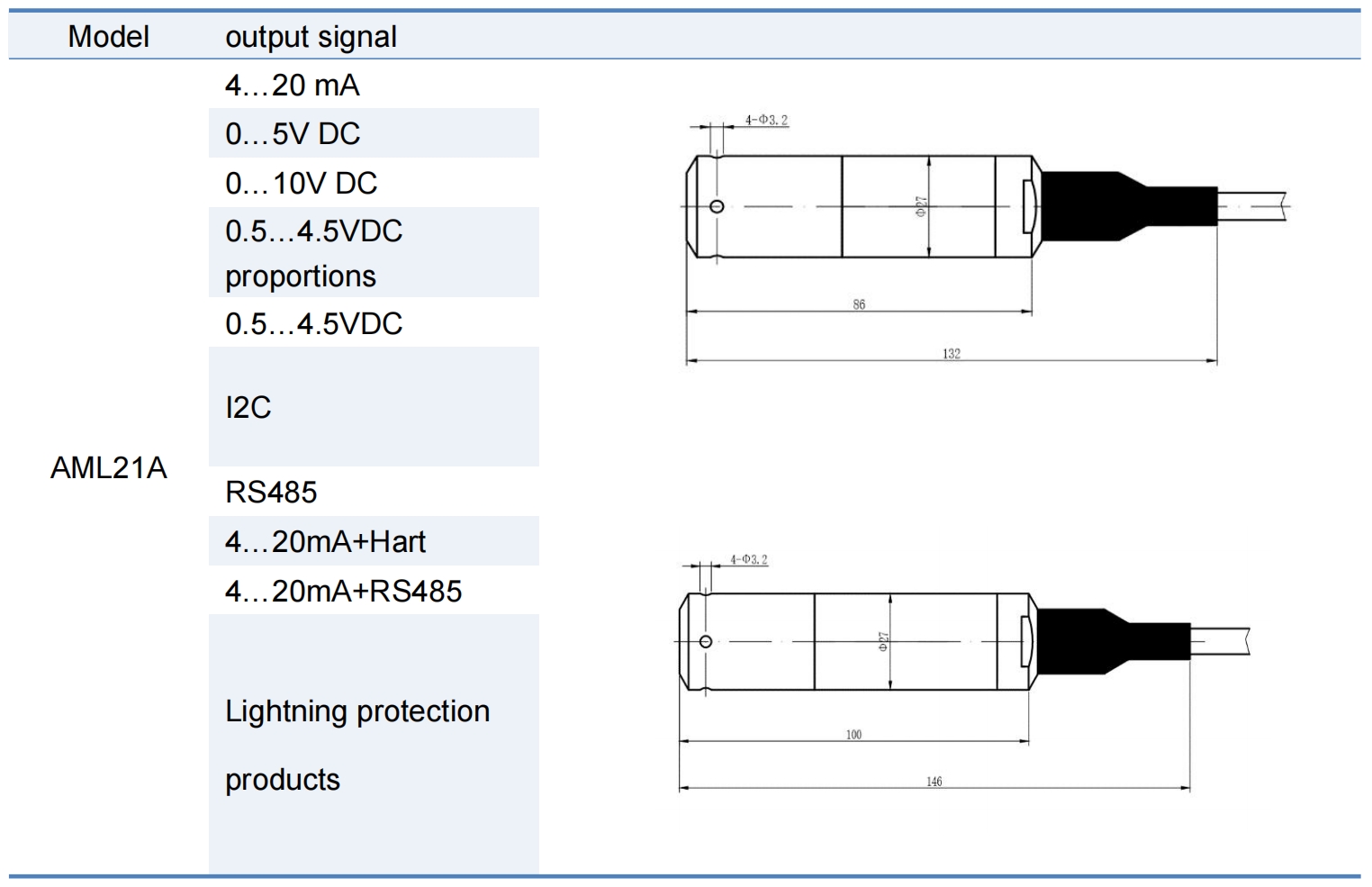

◆ A variety of output signals are optional;
◆ Full welding process, durable
◆ Anti-interference, anti-surge protection；
◆ Wide measuring range: 0~1m~200mH2O;
◆ 316L stainless steel isolation diaphragm, integrated design;
◆ Anti-lightning strike, in line with IEC61000-4-5/Level-4 standard;
Product Overview:

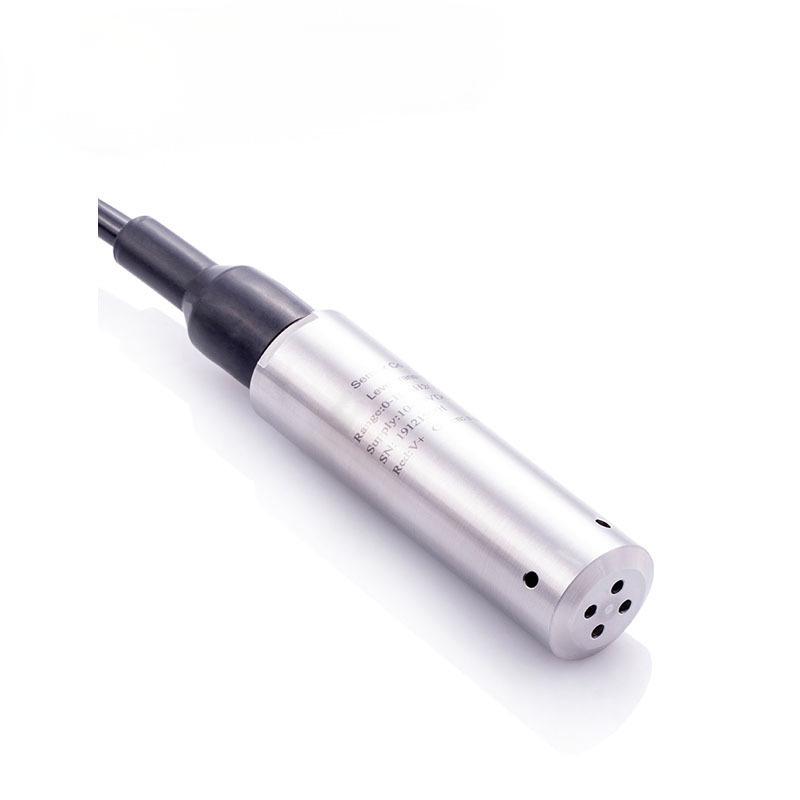

AML21A Based on the principle that the measured hydrostatic pressure is proportional to the height of the liquid, the series of submersible liquid level transmitters are integrated products that use the piezoresistive effect of diffusion silicon or ceramic sensitive components to convert the static pressure into an electrical signal, and then cooperate with a special digital circuit to output an industrial standard signal through signal amplification, linear compensation, anti-interference, anti-surge protection and other signal processing.

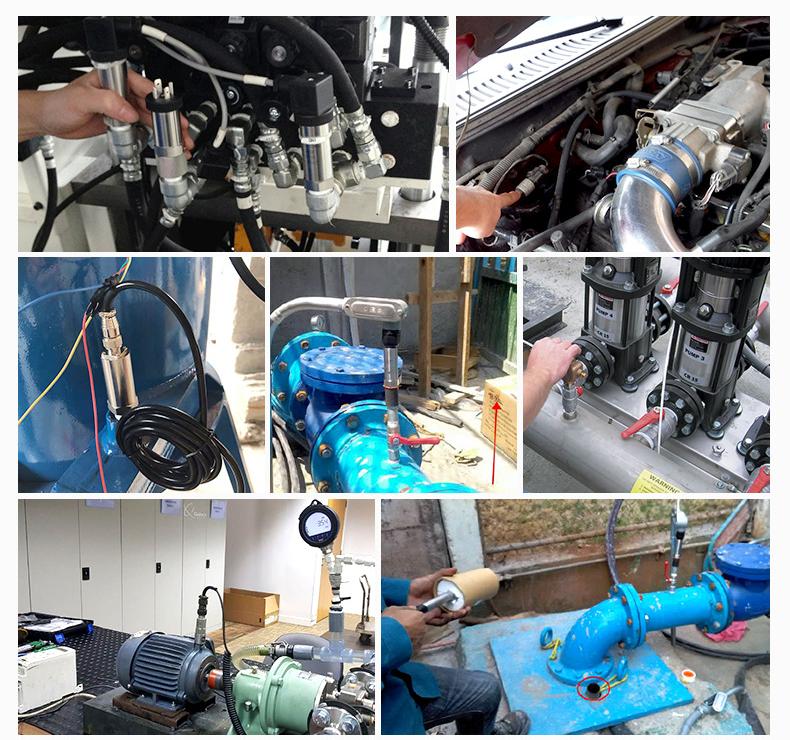

Product Applications:
◆ Waterworks, chemical plants
◆ Sewage treatment
◆ Deep wells and dams
◆ Flood control and irrigation
