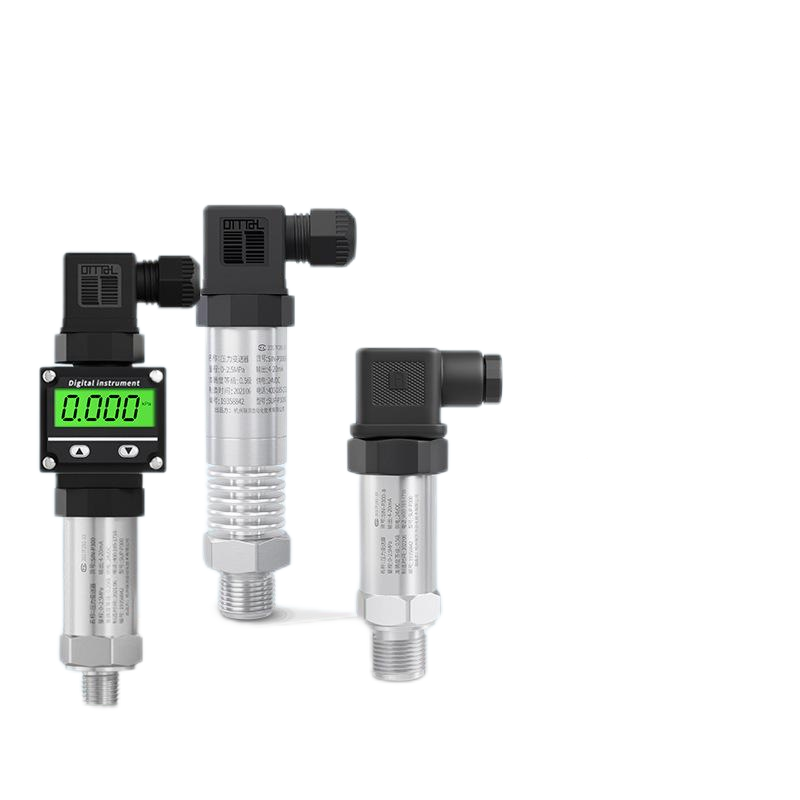

AMP21A Diffused Silicon Pressure Transmitter

Additional information

Model

AMP21A

Range

-0.1…0~0.01…100MPa

Accuracy

±0.5%FS, ±0.25%FS

Type of pressure

Gauge (G), absolute (A), sealed gauge (S)

Output Siginal

4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv

Power

10-30V 5V

Material

Housing: 304 stainless steel Sensor: 316L stainless steel

Pressure connector

M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)

Electrical connection

cable connection, DIN43650 , plug connection,parked

Ingress protection

IP65(OEM) IP68 (sealed type)

Explosion proof

Intrinsically safe explosion proof ExiaⅡCT6

Operating temp.

-30~80℃

Description

Features:
◆ A variety of output signals are optional;
◆ Anti-interference, anti-surge protection；
◆ High precision, good reliability, German chips;
◆ 316L stainless steel isolation diaphragm, integrated design;

◆The AMP21A pressure transmitter is a high-precision and high-stability pressure measurement product independently designed and produced by our company. The product adopts a silicon piezoresistive sensor with a stainless steel isolation diaphragm, with a special digital circuit, and outputs a standard industrial signal through signal amplification, linear compensation, anti-interference, anti-surge protection and other signal processing.

Additional information

Model	AMP21A
Range	-0.1…0~0.01…100MPa
Accuracy	±0.5%FS, ±0.25%FS
Type of pressure	Gauge (G), absolute (A), sealed gauge (S)
Output Siginal	4-20mA 1-5V/0-5V 0.5~4.5V 0~10V 100mv
Power	10-30V 5V
Material	Housing: 304 stainless steel Sensor: 316L stainless steel
Pressure connector	M20×1.5, G1/2, G1/4, NPT1/2, etc. (customized)
Electrical connection	cable connection, DIN43650 , plug connection,parked
Ingress protection	IP65(OEM) IP68 (sealed type)
Explosion proof	Intrinsically safe explosion proof ExiaⅡCT6
Operating temp.	-30~80℃

Additional information

Description

Additional information

Drawing
