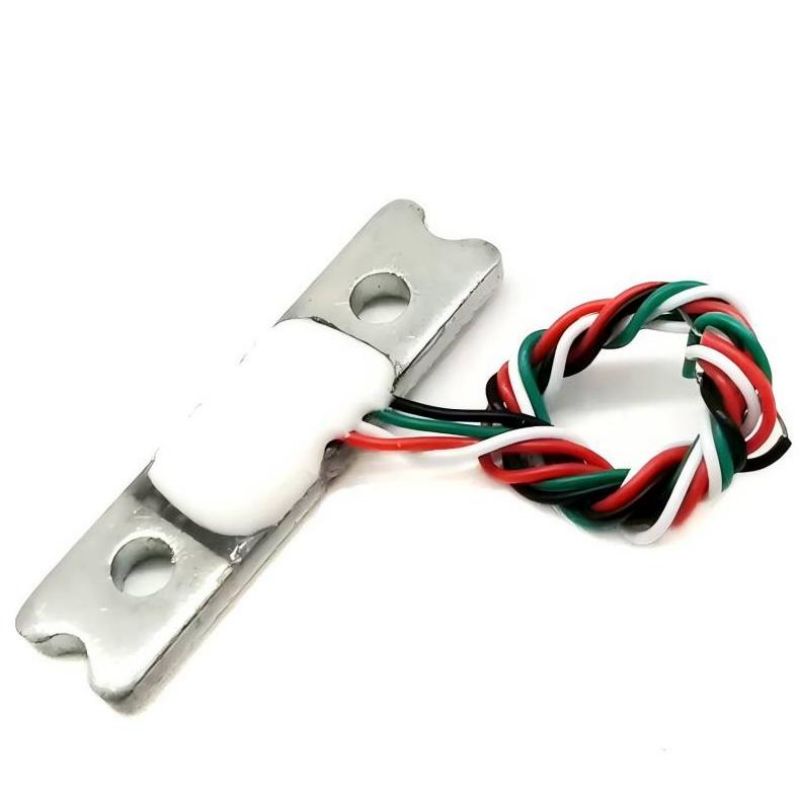

AM34D micro load cell have 10kg,20kg,30kg,40kg, 50kg, the accuracy is 0.3% F.S, small size 31.8*7.9*H mm, and the cable is Φ0.8×110mm.
| Accuracy | 0.3% F.S |
|---|---|
| Capacity | 10kg,20kg,30kg,40kg, 50kg |
| Certificate | RoHS, CE |
| Creep | 0.1 % F.S./3min |
| Material | manganese steel |
| Model | AM34D |
| Sensitivity | Table±0.2 mV/V |
| Size | 31.8*7.9*H mm |
AM34D micro load cell have 10kg,20kg,30kg,40kg, 50kg, the accuracy is 0.3% F.S, small size 31.8*7.9*H mm, and the cable is Φ0.8×110mm. the load cell is hot sales for Baggage weighing, Hook scale, portable scale, postal scale, hanging scale, fishing scale.
| Accuracy | 0.3% F.S |
|---|---|
| Capacity | 10kg,20kg,30kg,40kg, 50kg |
| Certificate | RoHS, CE |
| Creep | 0.1 % F.S./3min |
| Material | manganese steel |
| Model | AM34D |
| Sensitivity | Table±0.2 mV/V |
| Size | 31.8*7.9*H mm |
Contact us if you need the Datasheet PDF.
