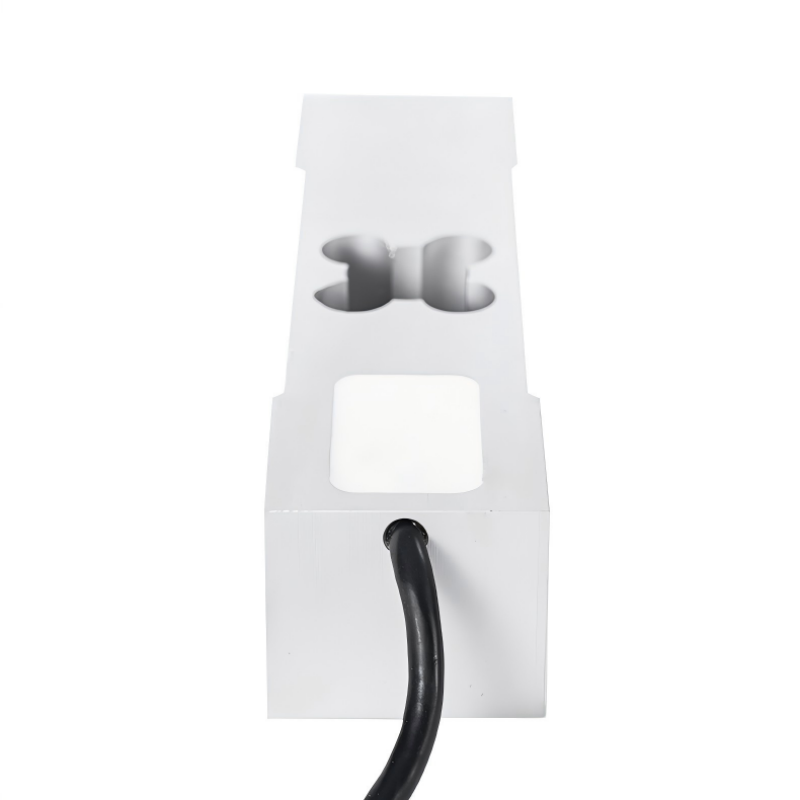

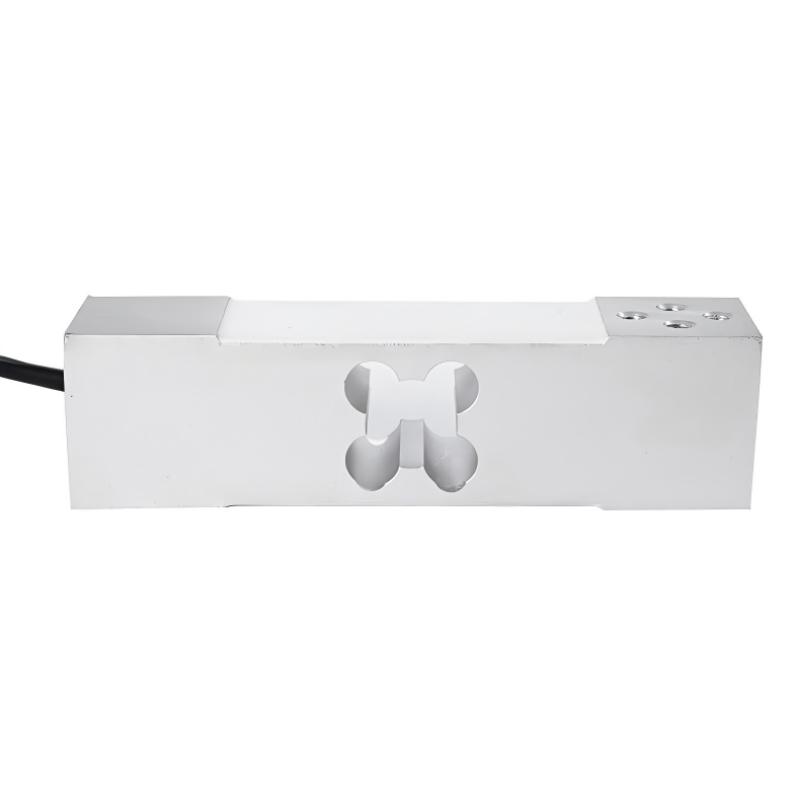

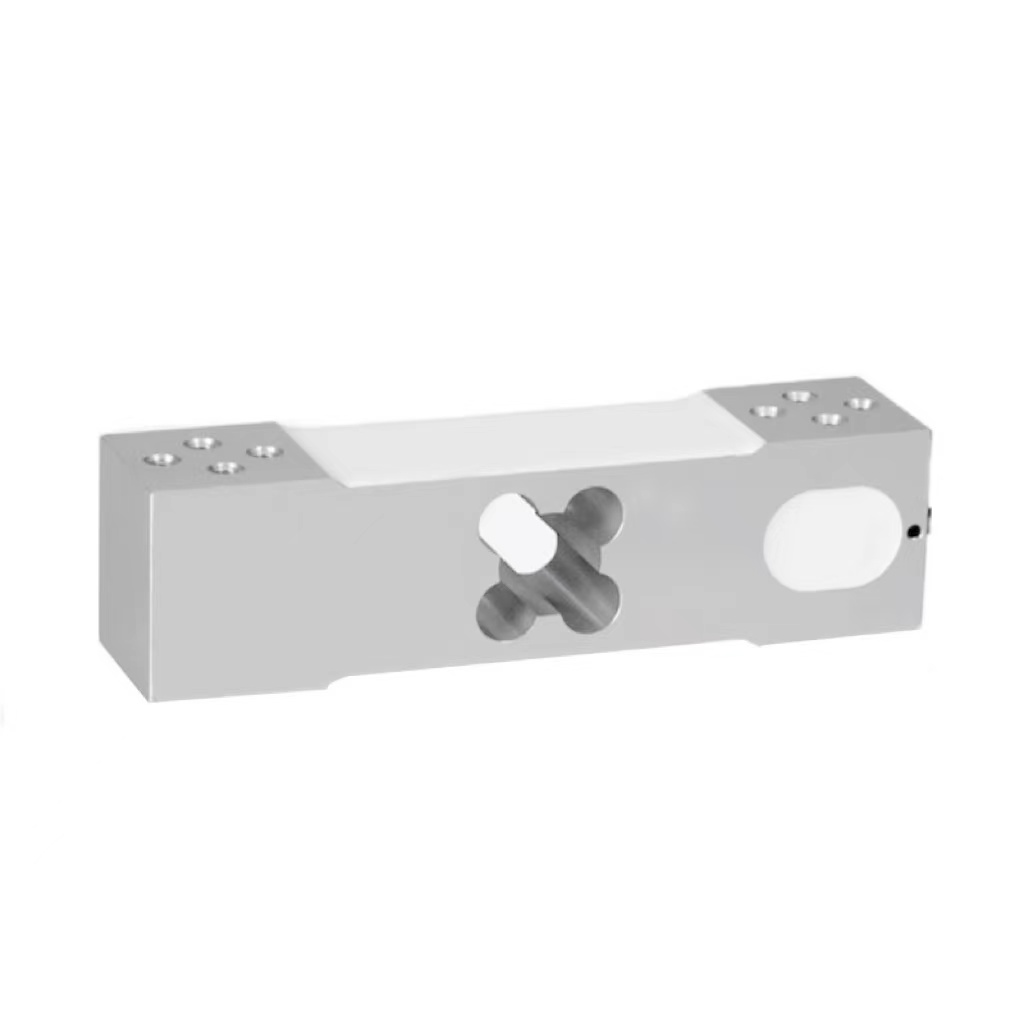

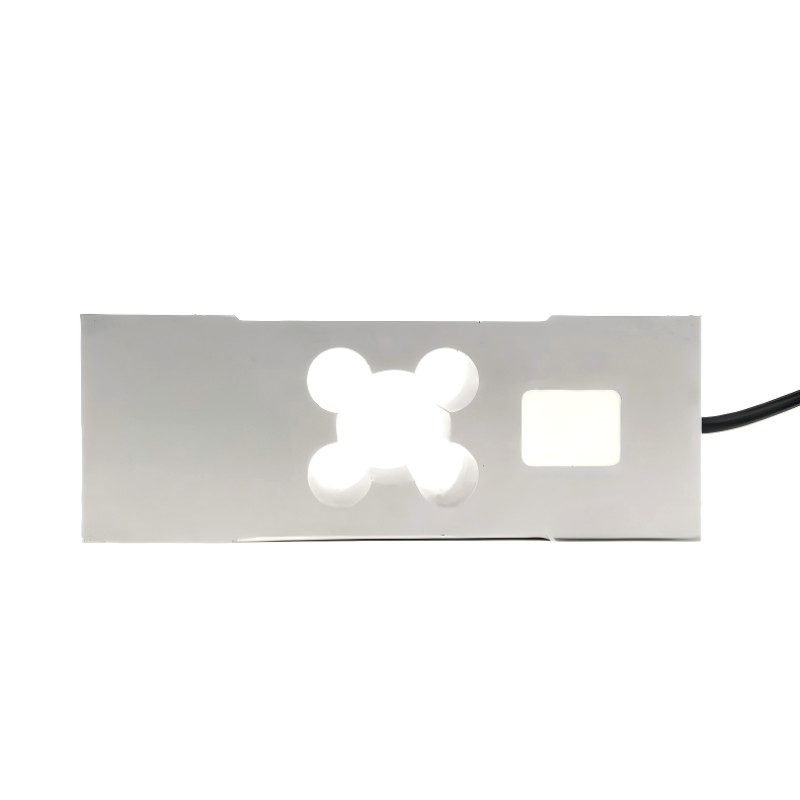

Parallel beam load cell-AP62A

AP61A parallel beam load cell also called single point load cell, is suitable for 250*350mm platform scale.

Additional information

Model

AP62A

Capacity

25kg,40kg,60kg,100kg,200kg,350kg

Size

150*40*35mm

Accuracy

±0.02%F.S

Creep

±0.02%F.S/30min

Material

Aluminum alloy

Sensitivity

2.0±5%mV/V

Description

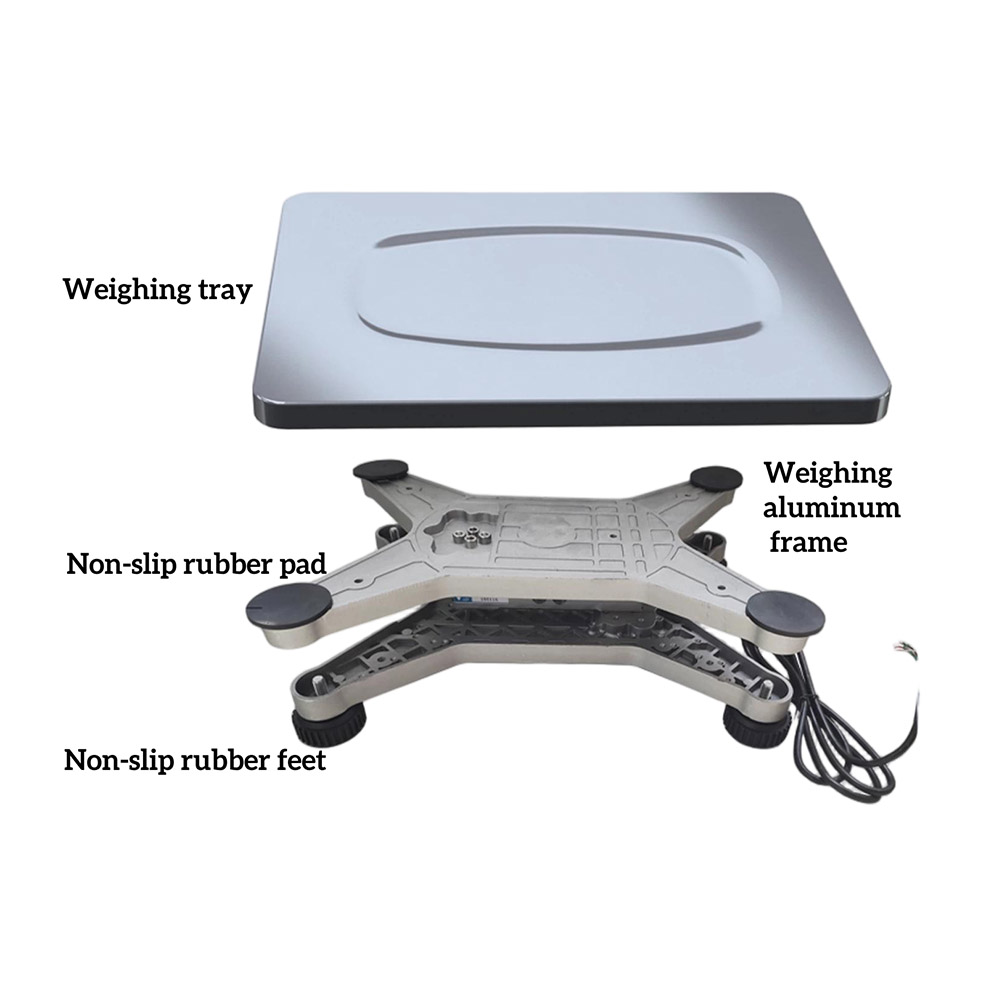

AP62A parallel beam load cell also called single point load cell, has 25kg,40kg,60kg,100kg,200kg,350kg weight range, suitable for400*400mm platform scale. High quality aluminium alloy material, surface anodized and anticorrision. The model load cell has good accuracy, C2 ±0.03%, C3 ±0.02%, and can customize the RS485/RS232 digital signal output. Hot sales for counting scale, platform scale, and the emerging field of intelligent home appliances, such as smart shelf, intelligent refrigerators, beehive scale and so on,medical bed.

Additional information

Model

AP62A

Capacity

25kg,40kg,60kg,100kg,200kg,350kg

Size

150*40*35mm

Accuracy

±0.02%F.S

Creep

±0.02%F.S/30min

Material

Aluminum alloy

Sensitivity

2.0±5%mV/V

Drawing

Contact us if you need the Datasheet PDF.
