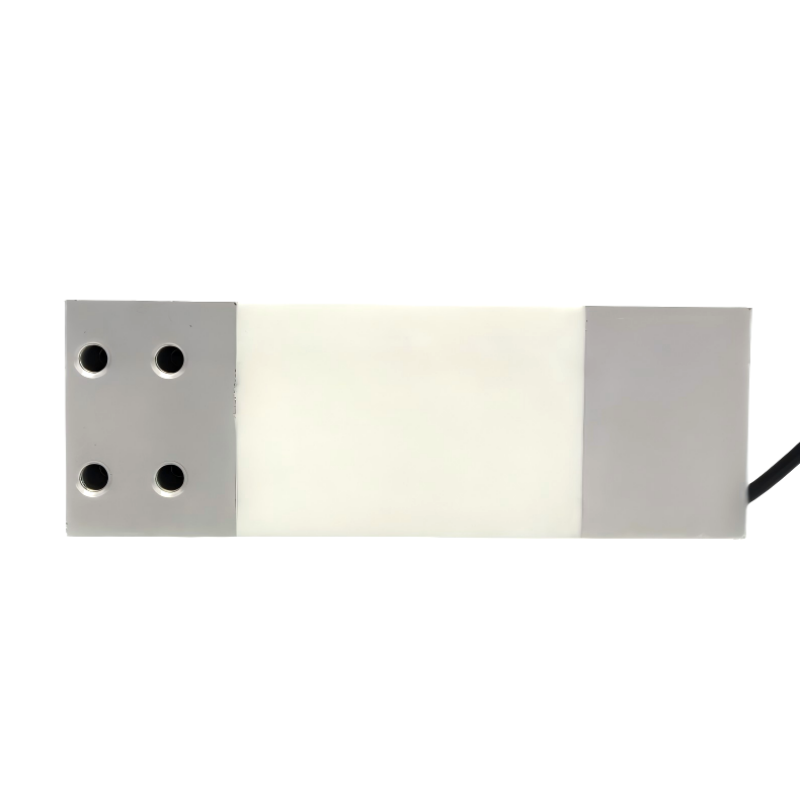

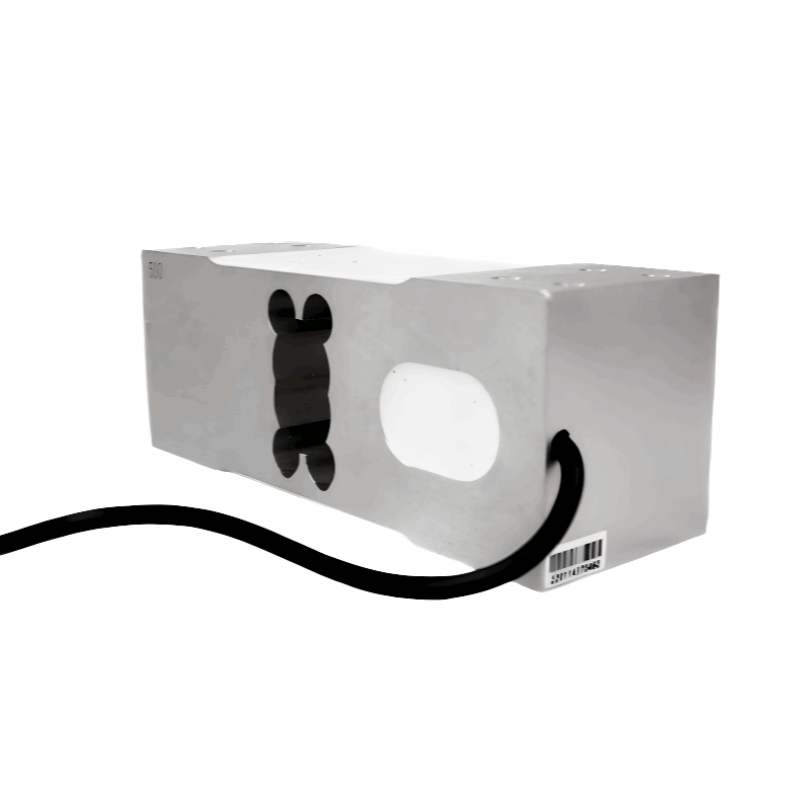

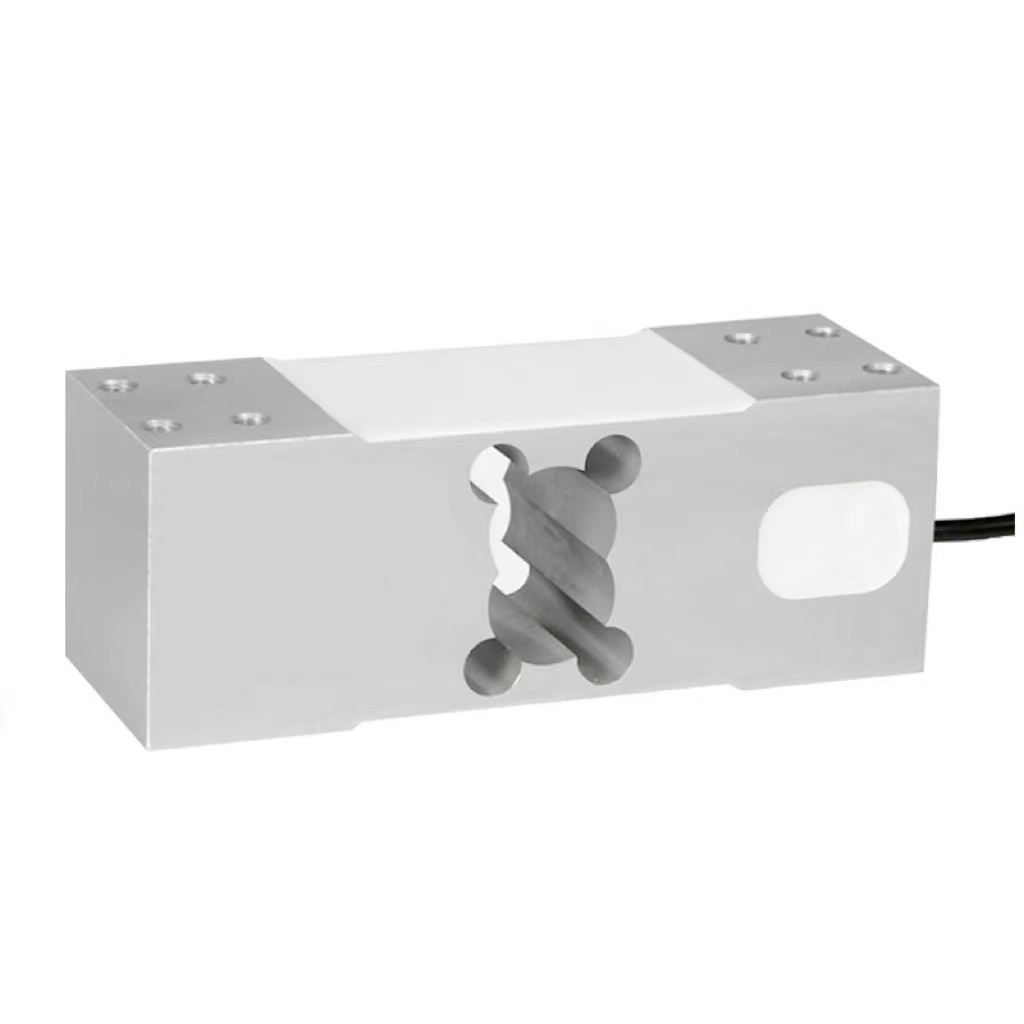

AP62B parallel beam load cell also called single point load cell, is suitable for 400*400mm platform scale.
| Model | AP62B |
|---|---|
| Capacity | 60kg,100kg,200kg,300kg,500kg,600kg,800kg,1000kg |

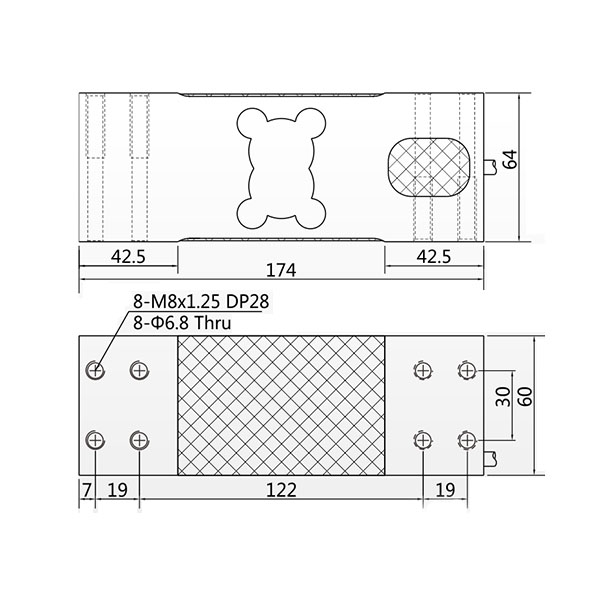

| Size | 174*60*64mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
AP62B parallel beam load cell also called single point load cell, has 60,100,200,300,500,600,800,1000kg weight range, suitable for 600*600mm platform scale. High quality aluminium alloy material, surface anodized and anticorrision. The model load cell has good accuracy, C2 ±0.03%, C3 ±0.02%. Hot sales for platform scale,belt scale and other smart application such as medical bed, smart warehouse scale,logistics scale etc.
| Model | AP62B |
|---|---|
| Capacity | 60kg,100kg,200kg,300kg,500kg,600kg,800kg,1000kg |
| Size | 174*60*64mm |
| Accuracy | ±0.02%F.S |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
Contact us if you need the Datasheet PDF.
