High accuracy and good stability full bridge low profile planar beam load cell.
| Model | AP91D |
|---|---|
| Sensitivity | 0.8±10%mV/V |
| Accuracy | ±0.05%F.S |
| Capacity | 15kg,25kg,75kg,125kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |

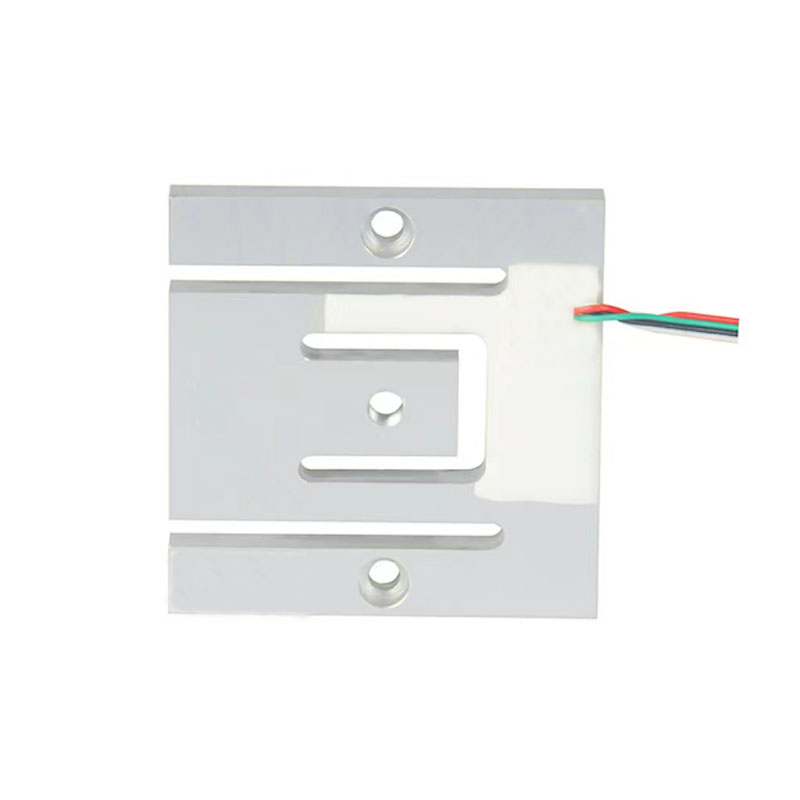

AF91D is a type of full bridge low profile planar beam load cell, it is flat and very low profile,usually used in low profile infant scales, low profile adult medical scales,low profile platform scales,airport baggage scales,postal scales etc.The capacity and thickness can be customized according to customer request.
Application：
low profile infant scales
Medical scale
low profile platform scales
airport baggage scales
postal scales
| Model | AP91D |
|---|---|
| Sensitivity | 0.8±10%mV/V |
| Accuracy | ±0.05%F.S |
| Capacity | 15kg,25kg,75kg,125kg |
| Creep | ±0.02%F.S/30min |
| Material | Aluminum alloy |
Contact us if you need the Datasheet PDF.
