Description
AT52J S beam load cell is Aluminum alloy material, Mainly used for crane scale, hopper scale, tensile testing etc.
AT52J S beam load cell is Aluminum alloy material, Mainly used for crane scale, hopper scale, tensile testing etc.
| Capacity | 50,100,200,500kg |
|---|---|
| Accuracy | ±0.05%F.S |
| Certificate | RoHS, CE |
| Creep | ±0.05%F.S/30min |
| Model | AT52J |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |

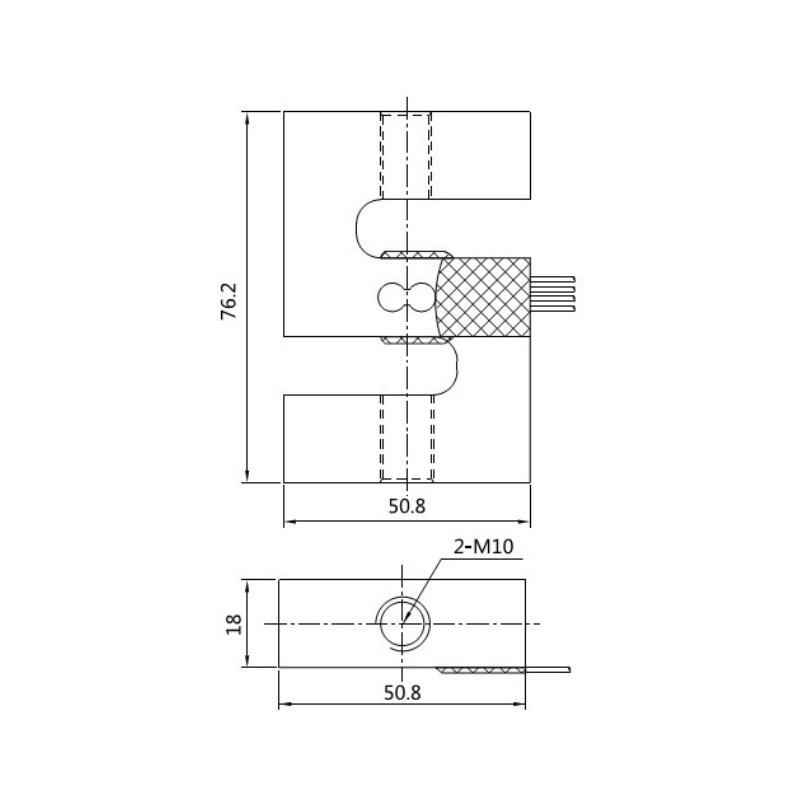

| Size | 50.8*76.2*18mm |
AT52J S beam load cell is Aluminum alloy material, Mainly used for crane scale, hopper scale, tensile testing etc.
| Capacity | 50,100,200,500kg |
|---|---|
| Accuracy | ±0.05%F.S |
| Certificate | RoHS, CE |
| Creep | ±0.05%F.S/30min |
| Model | AT52J |
| Material | Aluminum alloy |
| Sensitivity | 2.0±5%mV/V |
| Size | 50.8*76.2*18mm |
Contact us if you need the Datasheet PDF.
