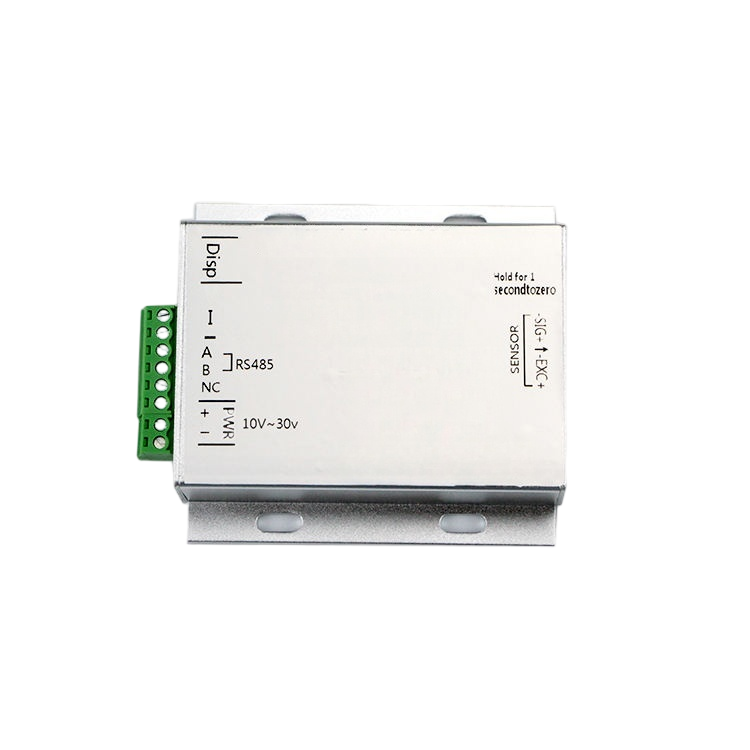

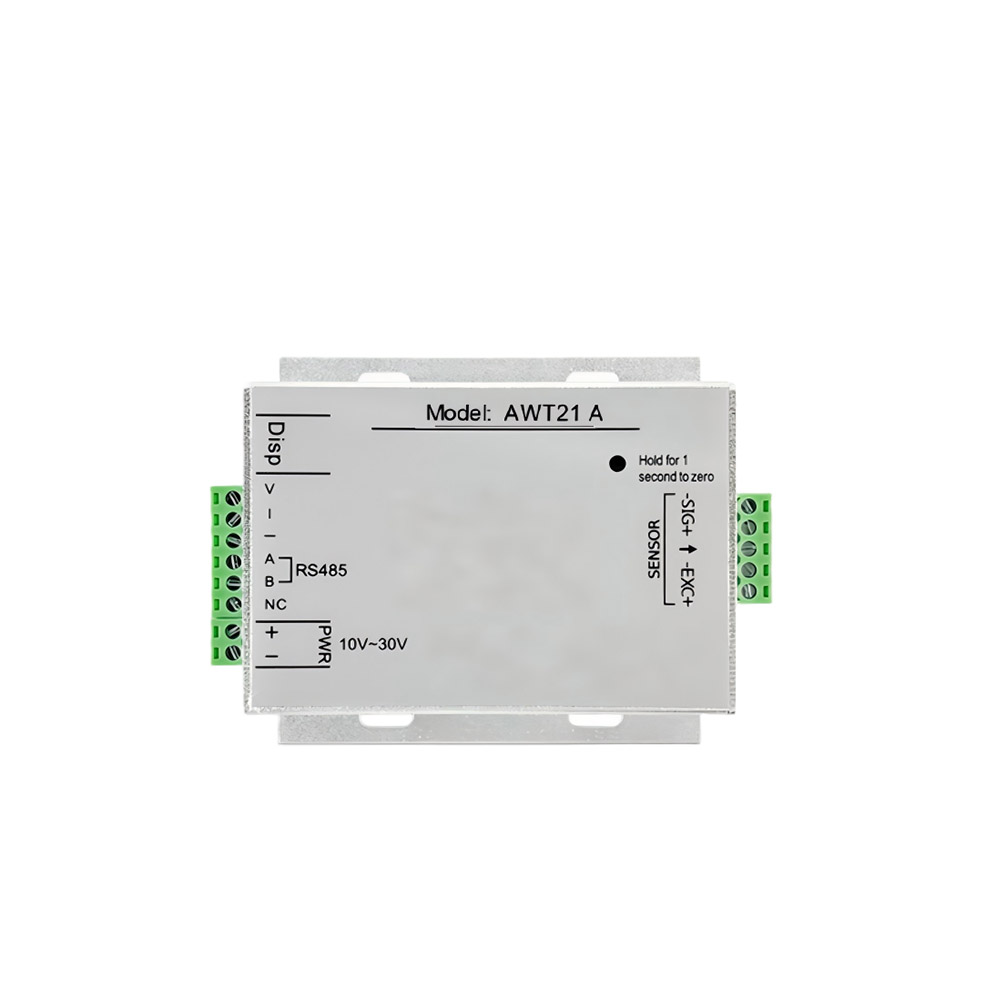

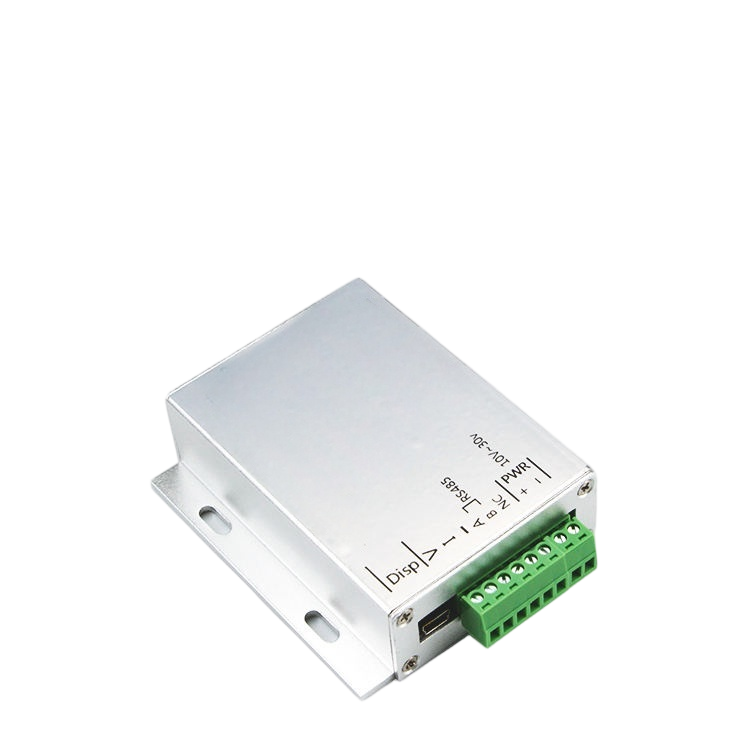

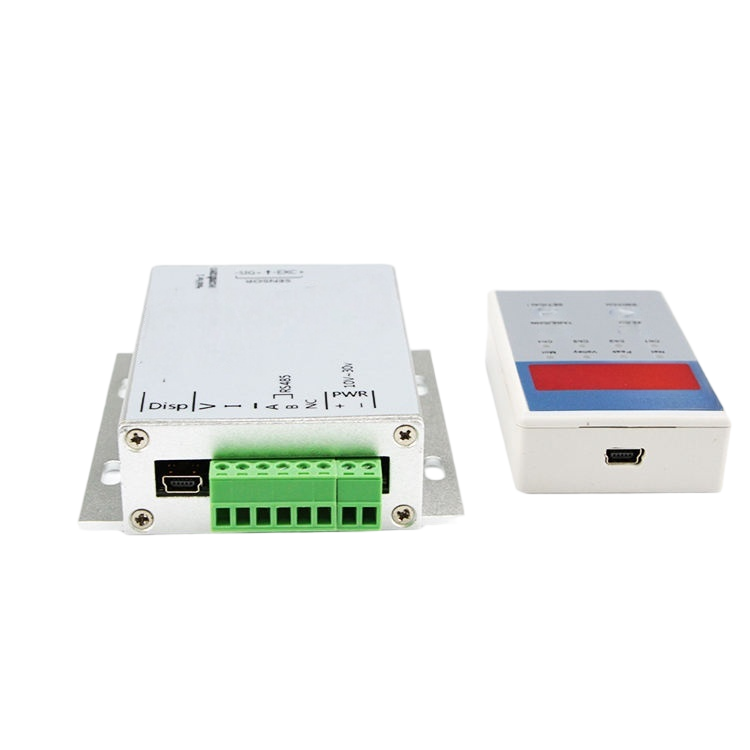

AWT21A Force Measuring Weighing Transmitter Amplifier for Load Cell RS485 interface: supports up to 32 nodes in parallel, Modbus RTU protocol and free protocol.
| Input Sensitivity | 0.4-6mV/V |
|---|---|
| Sensor Excitation Voltage | 5VDC±2%,100mA (up to 6 350Ω sensors can be connected) |
| Supply Voltage | DC: 10V-30V |
| Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 |
| Comprehensive Precision | 1/10000 |
| Operation Temperature | -30-+60℃ |
| Sample Frequency | 1280HZ |
| Protection Grade | IP65 |
AWT21A weight transmitter, compared with products in the same price range, offers faster speed up to 1280 times/second with a resolution of 1/3000. RS232 interface: supports Modbus RTU protocol and free protocol. RS485 interface: supports up to 32 nodes in parallel, Modbus RTU protocol and free protocol.
| Input Sensitivity | 0.4-6mV/V |
|---|---|
| Sensor Excitation Voltage | 5VDC±2%,100mA (up to 6 350Ω sensors can be connected) |
| Supply Voltage | DC: 10V-30V |
| Baud rate | 1200,2400,4800,9600,19200,38400,57600,115200 |
| Comprehensive Precision | 1/10000 |
| Operation Temperature | -30-+60℃ |
| Sample Frequency | 1280HZ |
| Protection Grade | IP65 |
Contact us if you need the Datasheet PDF.
