Advanced Parallel Beam Load Cell Solutions for Smart Beehive Monitoring
AmowellSensor AP61A-100kg & AP62A-100kg
In outdoor smart agriculture applications, temperature variation is one of the most critical factors affecting weighing accuracy. For smart beehive monitoring systems, where continuous and highly stable weight data is required for AI-based analytics, temperature drift can significantly impact data reliability.
At AmowellSensor, we provide customized temperature-compensated parallel beam load cells specifically optimized for smart beehive systems in European and North American markets.
1. Why Temperature Compensation Matters in Smart Beehives
Smart beehive systems rely on precise weight monitoring to:
- Track daily honey production
- Analyze nectar collection behavior
- Detect swarming trends
- Monitor colony health
- Support AI-driven agricultural decision-making
However, beehives are installed fully outdoors, where:
- Morning and evening temperatures differ significantly
- Rapid sunrise warming causes material expansion
- Night cooling affects zero balance
- Seasonal climate shifts create long-term drift
Without enhanced temperature compensation, weight data may show:
- Artificial weight gain in early morning
- Apparent weight loss after sunset
- Gradual seasonal drift unrelated to honey production
- Inaccurate AI model inputs
Stable sensors are the foundation of reliable AI systems.
2. Temperature Compensation in Parallel Beam Load Cells
Parallel beam load cells are widely used in beehive systems due to their:
- High sensitivity
- Compact structure
- Excellent repeatability
- Uniform load distribution
However, standard industrial-grade temperature compensation is often insufficient for continuous outdoor agricultural deployment.
To address this challenge, AmowellSensor provides customized temperature-compensated versions designed specifically for smart beekeeping applications.
3. AmowellSensor AP61A-100kg & AP62A-100kg
Customized for Smart Beehive Temperature Stability

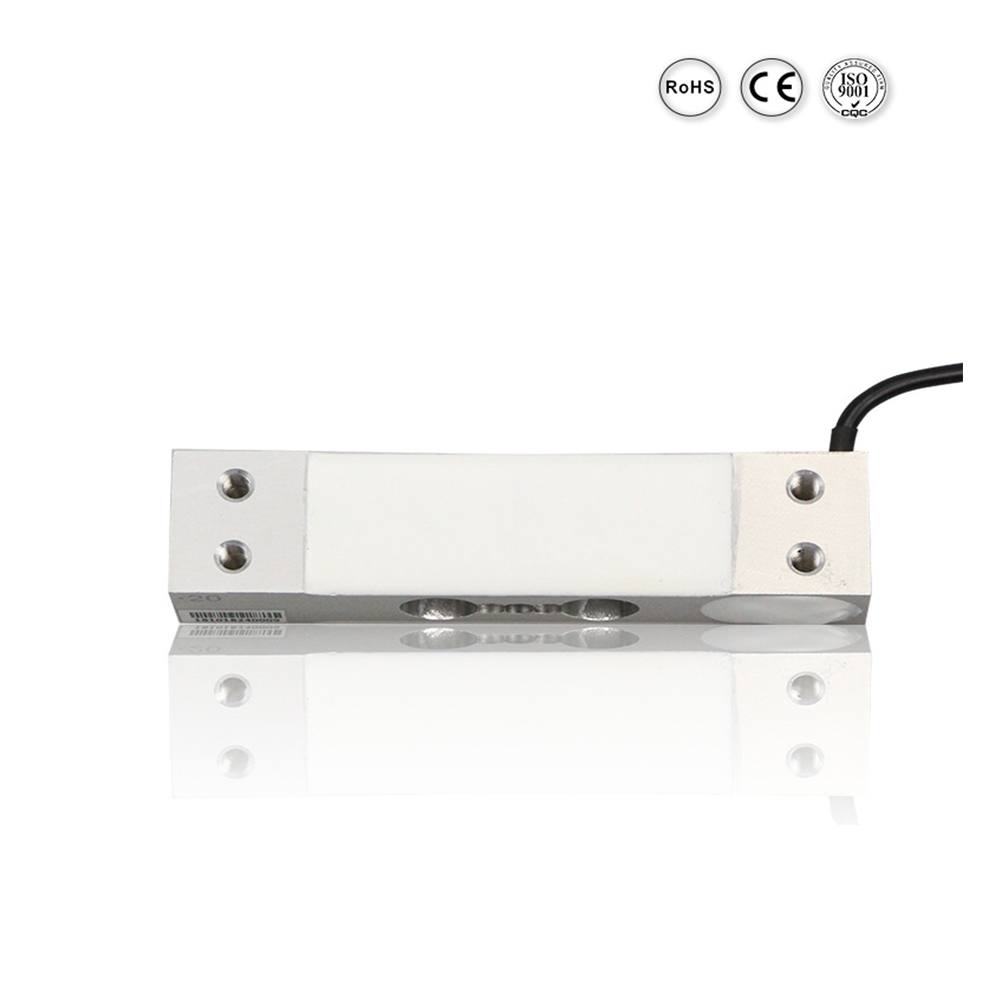

AP61A-100kg
- Dimensions: 130 × 30 × 22 mm
- Compact parallel beam structure
- Ideal for integrated hive base platforms
- Suitable for lightweight bracket systems

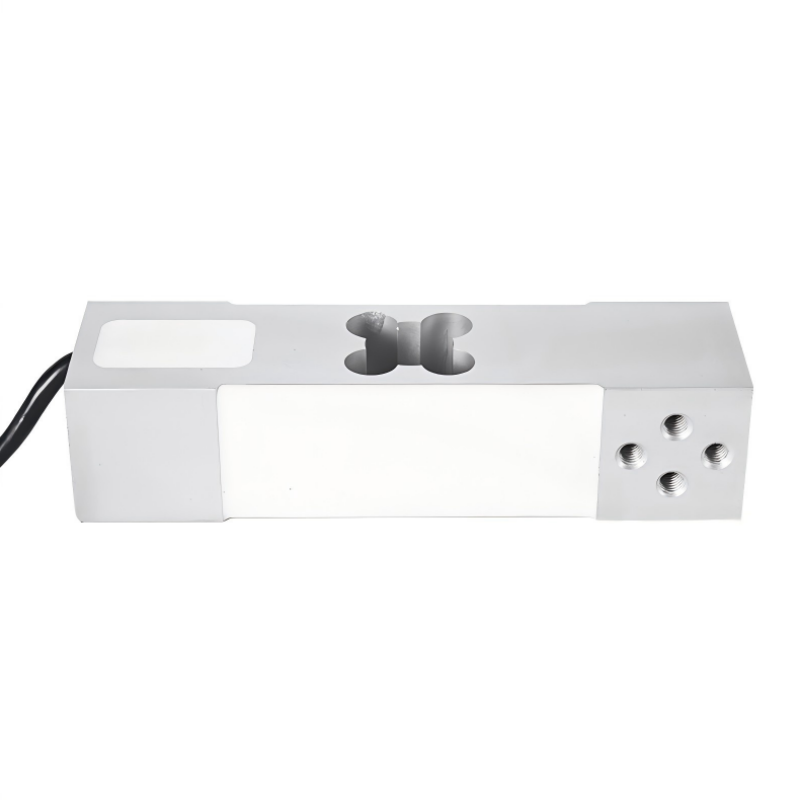

AP62A-100kg
- Dimensions: 150 × 35 × 40 mm
- Reinforced structural body
- Better suited for heavy-duty or commercial beehive installations
- Improved load uniformity for larger hive structures
Both models are available with enhanced outdoor temperature compensation customization.
4. Smart Temperature Compensation for Outdoor Stability
The customized versions include:
4.1 Optimized Strain Gauge Selection
Low temperature coefficient strain gauges reduce resistance variation caused by ambient temperature changes.
4.2 Precision Bridge Matching
Improved Wheatstone bridge balancing minimizes:
- Temperature effect on zero (TEZ)
- Temperature effect on span (TES)
4.3 Structural Thermal Optimization
Aluminum alloy material selection and stress distribution optimization reduce expansion mismatch under rapid temperature shifts.
4.4 Designed for Morning–Evening Stability
Special calibration reduces measurement deviation caused by:
- Early morning temperature rise
- Evening cooling effects
- Rapid day–night fluctuations
This significantly reduces outdoor temperature drift and stabilizes long-term weight monitoring.
5. Difference Between Customized Beehive Version and Standard Industrial Models
| Feature | Standard Industrial Load Cell | Customized Smart Beehive Version |
|---|---|---|
| Temperature Compensation | General industrial grade | Enhanced outdoor-grade |
| Morning–Evening Drift | Noticeable in outdoor use | Significantly reduced |
| Seasonal Stability | Moderate | Optimized for long-term agriculture |
| AI Data Reliability | Basic | Stable for AI analytics |
| Long-Term Outdoor Performance | Limited | Specifically optimized |
For European and North American smart beekeeping projects, enhanced temperature compensation directly improves AI model accuracy and remote monitoring reliability.
6. Fast Delivery & Industry-Specific Stock Availability
To support smart agriculture integrators across Europe and North America, AmowellSensor maintains inventory of customized industry-specific versions of:
- AP61A-100kg (130×30×22 mm)
- AP62A-100kg (150×35×40 mm)
Advantages include:
- Ready-to-ship stock
- Shorter lead times
- Stable batch consistency
- Faster project deployment
- Reduced development cycle
Unlike fully custom industrial redesigns, these optimized beehive models are already prepared for smart agriculture applications.
8. Conclusion
Temperature compensation is not just a technical parameter — it is a critical factor determining the reliability of AI-driven smart beehive systems.
With customized temperature-compensated parallel beam load cells, AmowellSensor helps reduce:
- Outdoor temperature drift
- Morning–evening measurement error
- Seasonal instability
- Long-term data deviation
The AP61A-100kg and AP62A-100kg models are engineered to deliver stable, precise, and AI-ready weight data for modern smart agriculture projects in Europe and North America.
Stable sensor performance.
Accurate agricultural intelligence.
Reliable smart beehive monitoring.
