In today’s fast-paced world, automatic coffee vending machines offer a convenient way to enjoy a barista-quality cup of coffee anytime, anywhere. Behind the smooth operation of these machines is a network of precision load cell sensors that ensure every ingredient is dispensed with accuracy. One of the key components is the Straight bar-type miniature load cell—a compact yet highly accurate weighing sensor.
In this blog, we explore how bar-type miniature load cells are used in automatic coffee vending machines, their unique features, how they are installed and function, and we share a real case study from a European client to show their impact in real-world applications.
What Is a Straight Bar-Type Micro Load Cell?
A Straight bar-type micro load cell is a high-precision load cell sensor designed to measure small weights in compact spaces. Unlike larger load cells, these miniature versions are engineered for applications where space is limited but performance cannot be compromised. They are widely used in vending systems, pharmaceutical dispensers, and laboratory automation.
Key Features of Straight Bar-Type Load Cells
- Ultra-Compact Size: Ideal for tight spaces inside vending machines.
- High Sensitivity & Resolution: Can detect changes as small as 0.1g or less.
- Robust Construction: Typically made from anodized aluminum or stainless steel, providing excellent resistance to moisture, corrosion, and mechanical wear.
- Strain Gauge Technology: Ensures long-term stability and low signal drift.
- Easy Integration: Available with standard mounting holes and signal interfaces compatible with most PLCs and control systems.
🛠️ How to Install a Straight Bar-Type Load Cell in a Coffee Vending Machine

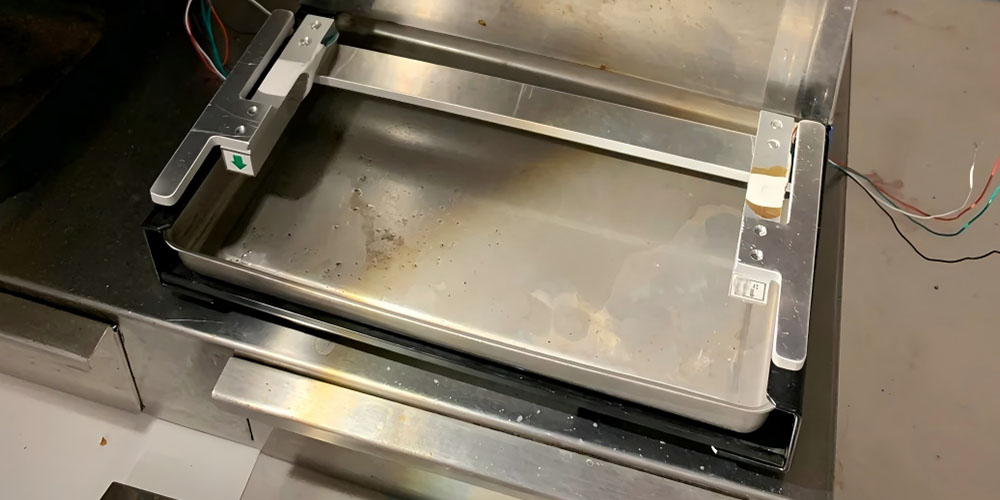

In a coffee vending machine, the bar-type load cell is typically installed under the ingredient containers or dispensing platform. Here’s a general overview of the installation process:
- Mounting Surface Preparation: Ensure the base is flat and stable to avoid signal drift.
- Sensor Placement: Attach the bar load cell securely under the tray or container using bolts or brackets.
- Wiring Connection: Connect the load cell to the machine’s control system or PLC using shielded cables.
- Calibration: Calibrate the load cell to ensure accurate weight readings for each ingredient.
The compact nature of Straight bar-type load cells allows them to be easily integrated without requiring significant design modifications.
☕ How the Straight Load Cell Works in a Coffee Vending Machine
Once installed, the Straight bar-type load cell continuously monitors weight changes during the vending process:
- Start Dispensing: When a user selects a coffee type, the machine begins dispensing coffee beans, milk powder, sugar, or water.
- Weight Detection: As ingredients fall into the container or cup, the load cell sensor the increasing weight.
- Signal Output: The change in resistance from the strain gauge is converted into an analog or digital signal, read by the control system.
- Automatic Cutoff: Once the target weight is reached, the system stops the dispenser to avoid overfilling.
- Error Detection: If the weight reading is abnormal (e.g., no increase due to a clog), the system can alert for maintenance or auto-correct.
This real-time feedback loop ensures ingredient precision, reduces waste, and maintains consistent flavor with every cup.
Benefits for Manufacturers and Operators
- Improved Product Consistency: Delivers the same taste every time.
- Inventory Management: Tracks ingredient usage in real-time.
- Maintenance Alerts: Detects anomalies like clogs or empty hoppers based on unexpected weight changes.
- Customer Satisfaction: Ensures a premium, reliable vending experience.
🌍 Real Case Study: A Smart Coffee Startup in Germany
Client Profile:
A coffee-tech startup based in Munich, Germany, approached us with the goal of launching a line of smart, IoT-enabled coffee vending machines for corporate offices and co-working spaces. Their top priorities were ingredient precision, compact hardware, and remote weight monitoring.
Challenges:
- Limited space for internal components
- Need for real-time ingredient tracking
- Ensuring repeatability for over 100+ cups per day
Our Solution:
We recommended our Miniature Bar-Type Load Cell (Model: AM31A load cell), with the following specifications:
- Capacity: 0–5kg
- Accuracy: ±0.05% FS
- Output: 1.0mV/V
- Dimensions: 80mm x 12.7mm x 12.7mm
The load cell was installed beneath each ingredient hopper. the system allowed for:
- Real-time ingredient weight monitoring
- Auto-refill alerts when stocks ran low
- Consistent dosing down to the gram
Results:
- 25% reduction in ingredient waste
- 30% faster maintenance response time
- 100% user satisfaction reported in pilot locations
The client successfully launched the first 300 units across Germany and Austria within six months.
📈 Conclusion
The integration of Straight bar-type miniature load cells in automatic coffee vending machines elevates both machine performance and end-user experience. From micro-dosing to remote management, these sensors offer a critical edge in modern vending technology.
Whether you’re an OEM manufacturer or a vending operator, choosing the right load cell sensor is key to delivering quality, efficiency, and innovation. If you’re looking for compact, high-precision weighing solutions for your coffee vending system, Amowellsensor team is here to help.
