Half bridge micro load cell 5kg for mini scales, uses four pcs together
| Model | AM23B |
|---|---|

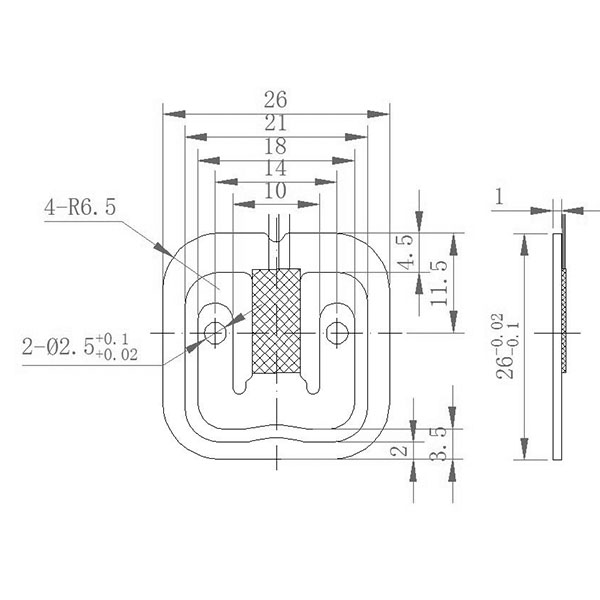

| Size | 26*26*1mm |
| Capacity | 3kg, 5kg |
| Accuracy | ±0.1%F.S |
| Creep | ±0.1%F.S/3min |
| Material | manganese steel |
AM23B is typical half bridge micro load cell for mini scales, uses four pcs together, made of manganese steel, with thickness of only one milimeter, it becomes very popular in application that using in limit spaces,it’s capacity each load cell 5kg, that total of them will be 20kg in one sets.With IOT industry grow up quickily, it is more popular used in some intelligent places to take an important part.
Application:
pet scale
logistics scale
smart coaster
game weighed
| Model | AM23B |
|---|---|
| Size | 26*26*1mm |
| Capacity | 3kg, 5kg |
| Accuracy | ±0.1%F.S |
| Creep | ±0.1%F.S/3min |
| Material | manganese steel |
Contact us if you need the Datasheet PDF.
