Micro load cell-AM39A

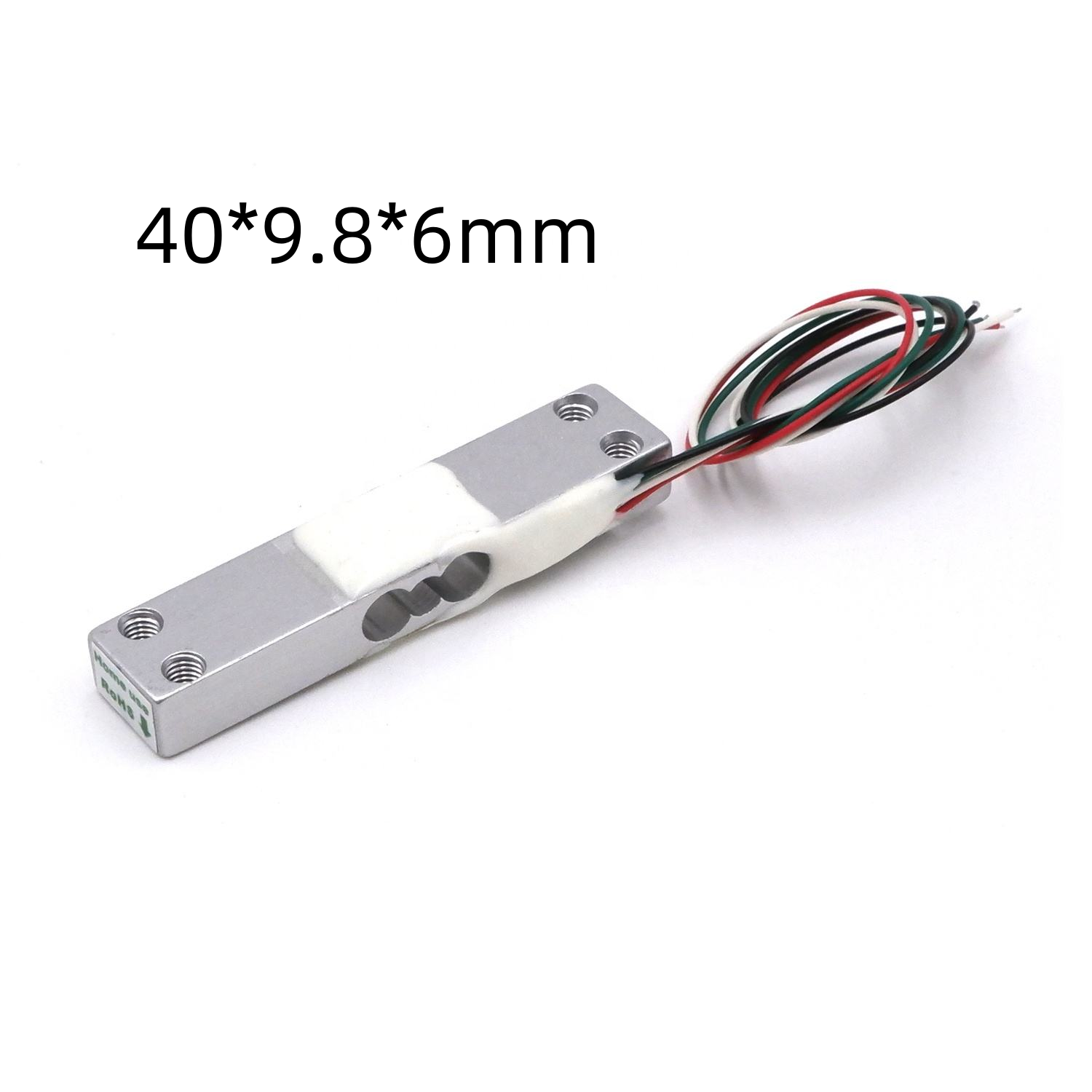

40*9.8*6mm Customized Counter Sink Holes Small Load Cell Weight Sensor 5kg Dual Hole Thin Micro Load Cell 2kg 3kg 5kg

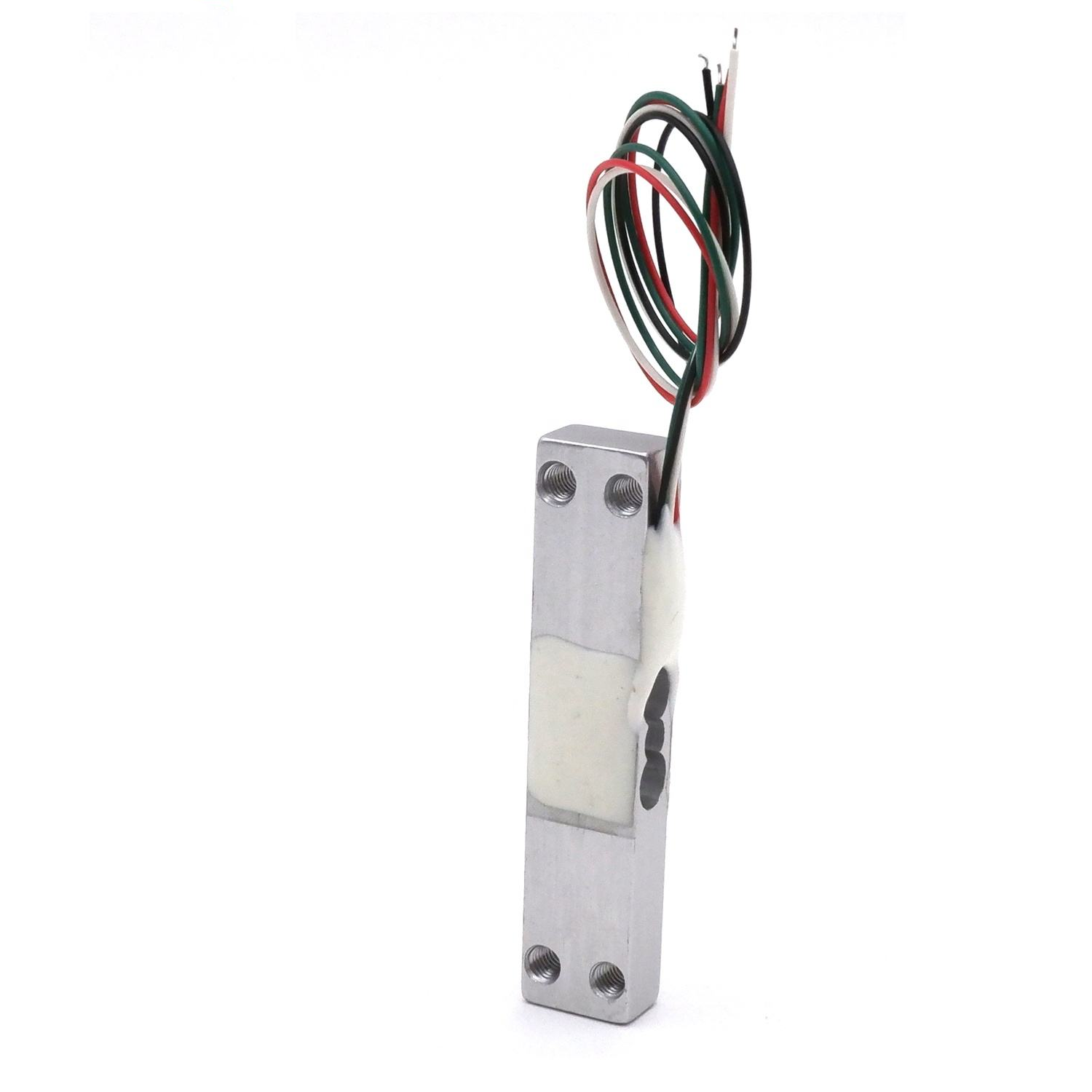

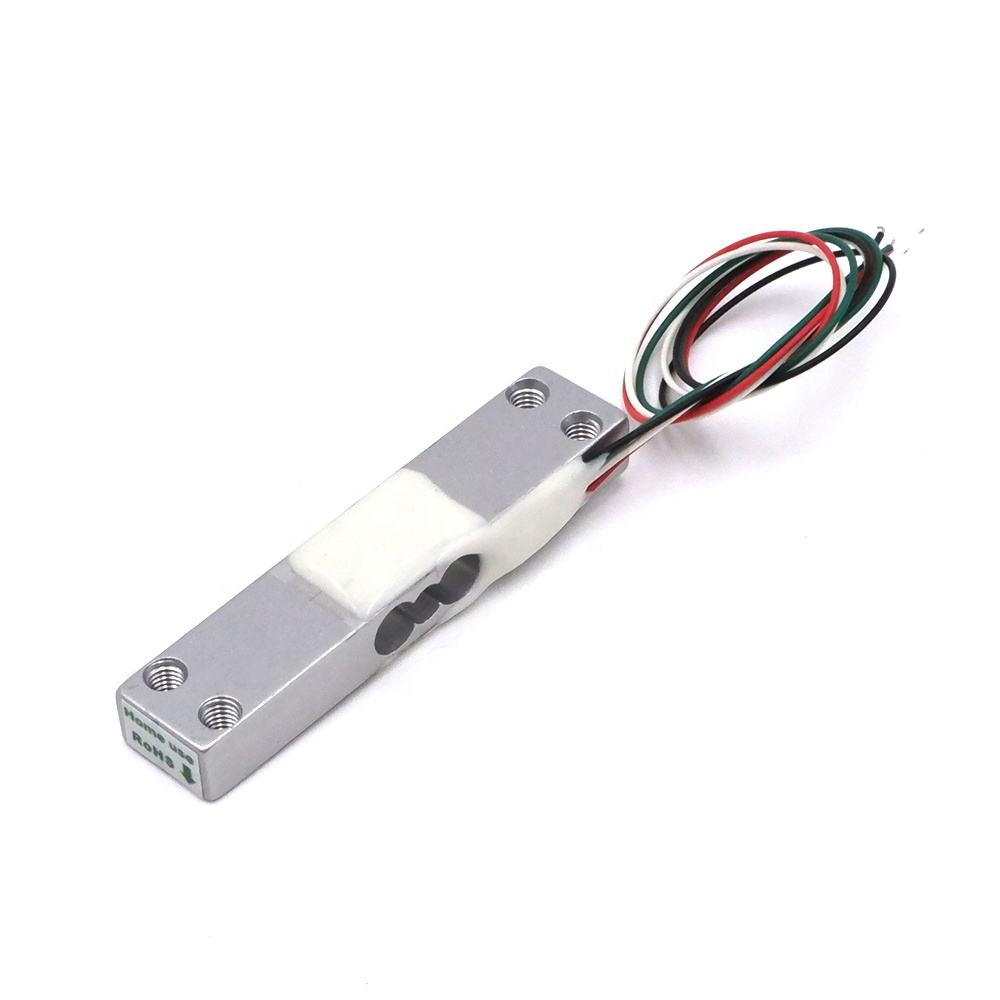

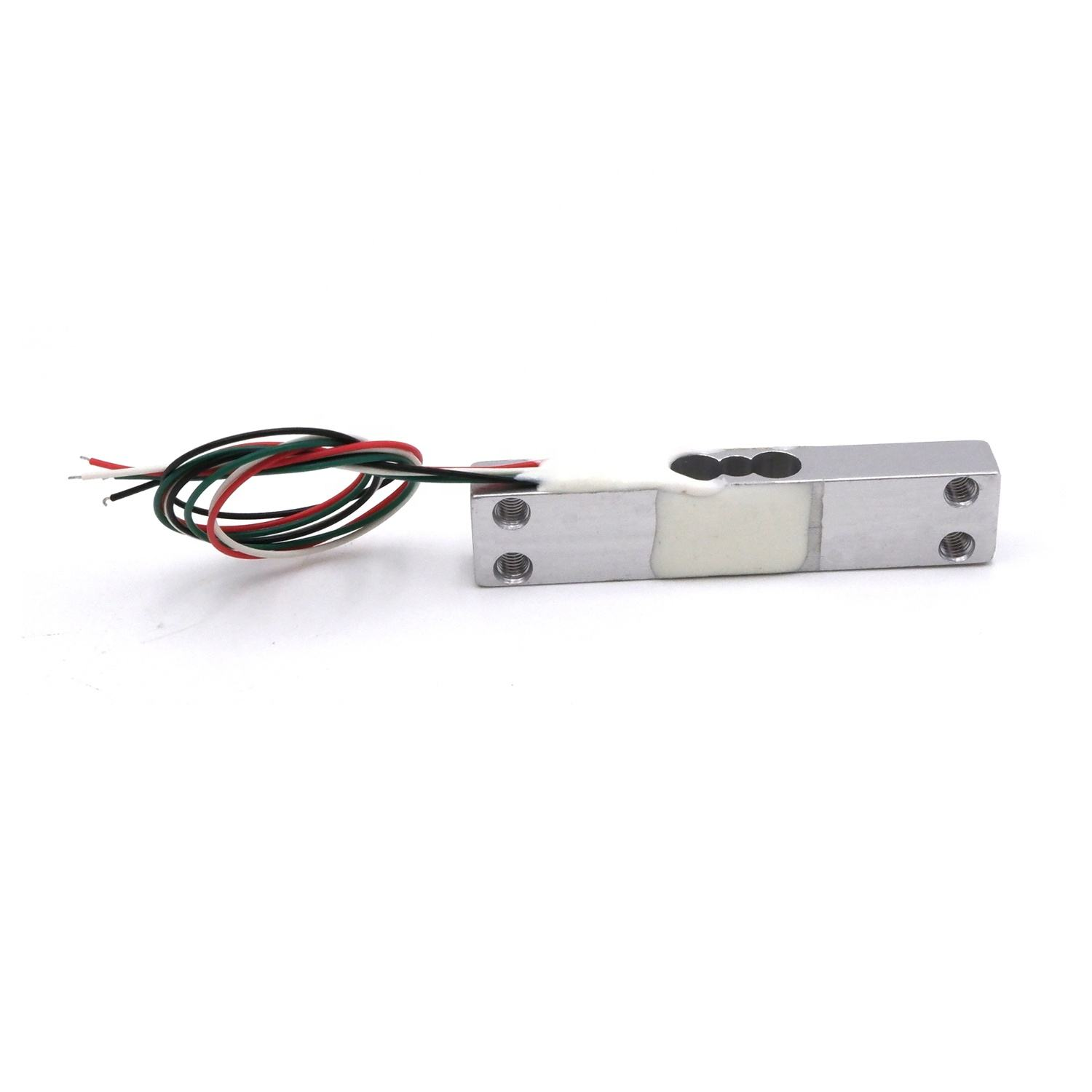

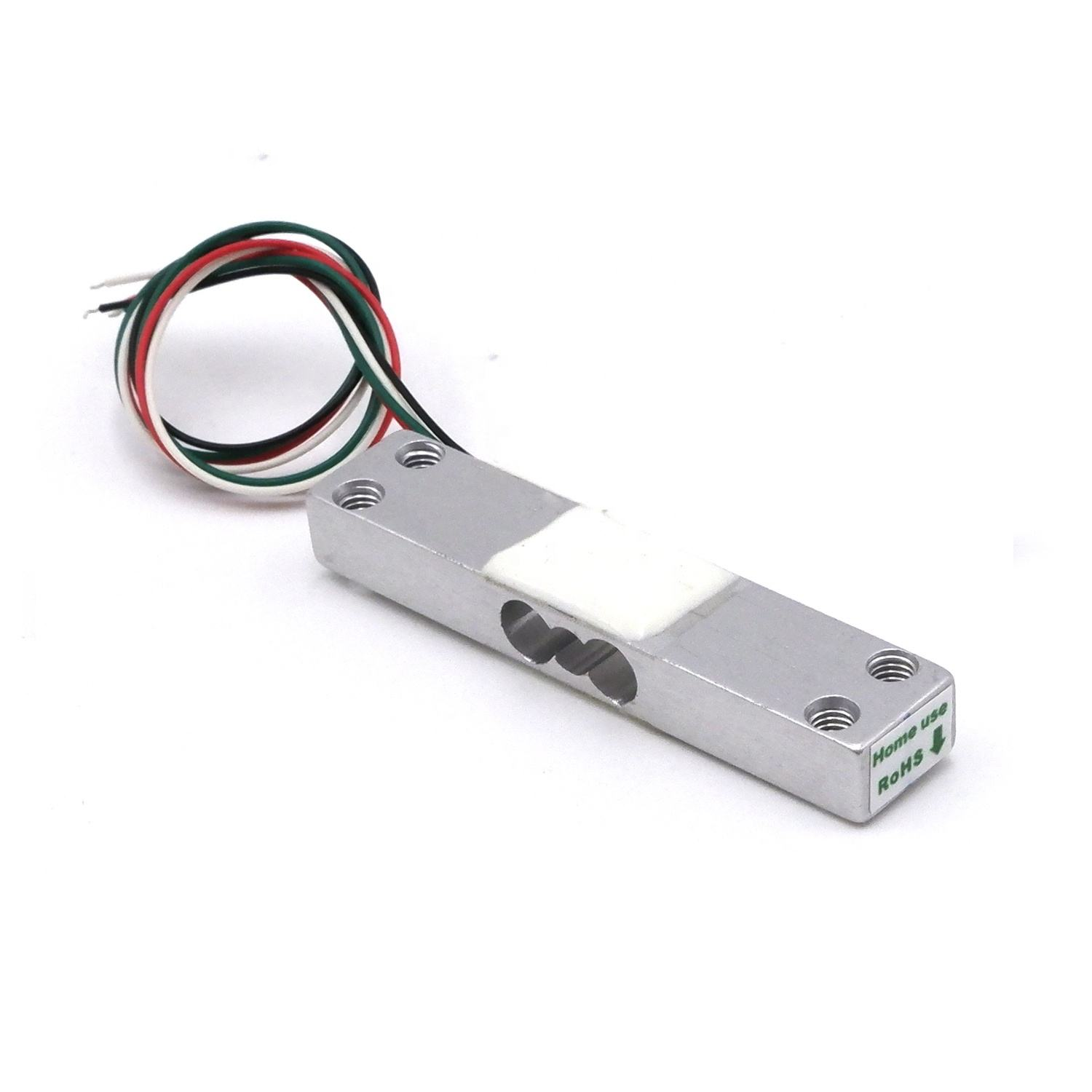

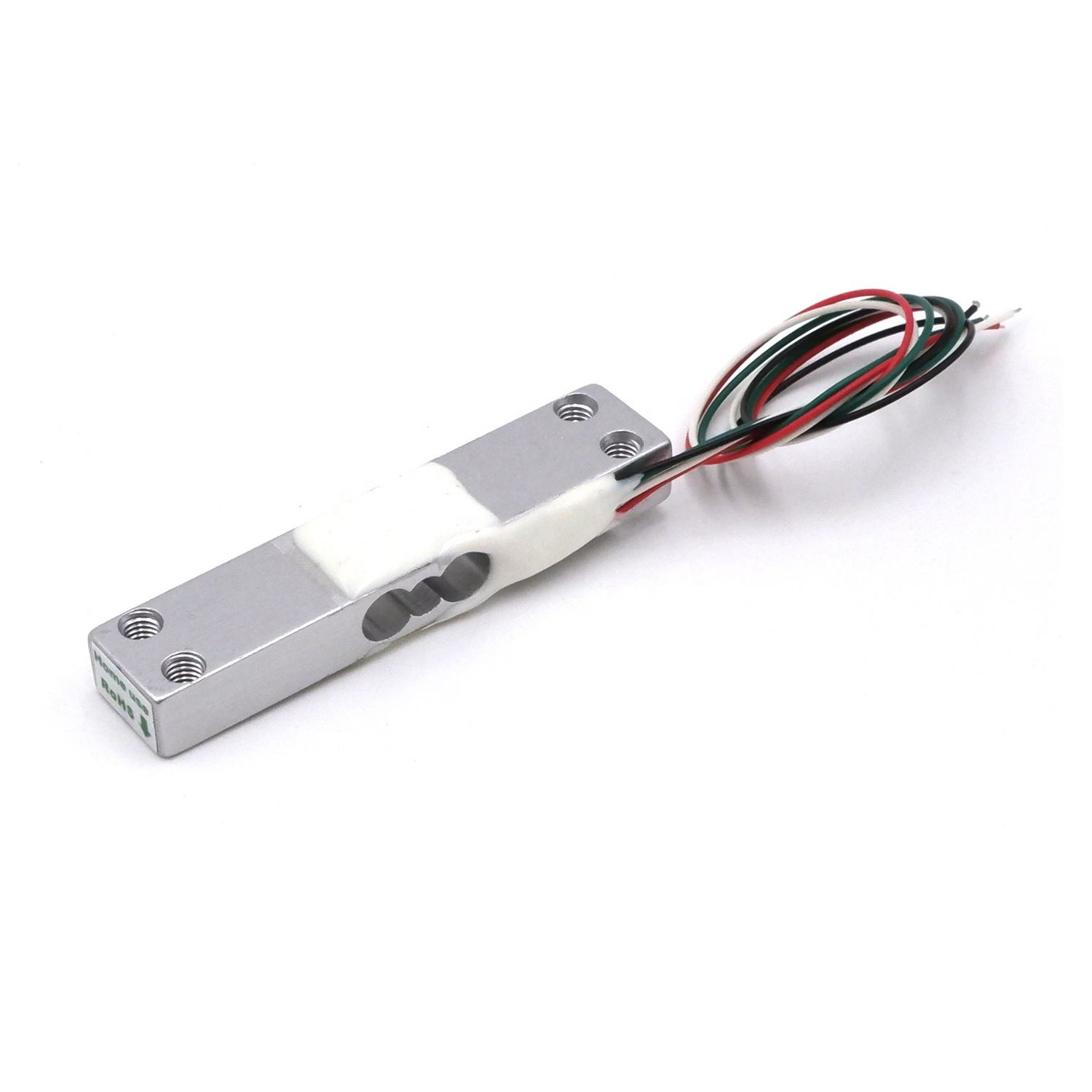

The AM39A load cell is a type of micro straight bar load cell, a full bridge with 4 wires, the size is 40*8*6mm, due to its small size, flat design.

Additional information

Model	AM39A
Range	2kg 3kg 5kg
Creep	0.05%F.S/3min
Size	40106 mm
Sensitivity	1.0±0.15 MV/V
Cable	UL1571* AWG32 x 150 mm
Input/output resistance	1000±10Ω/1000±5Ω

Description

The AM39A load cell is a type of micro straight bar load cell, a full bridge with 4 wires, the size is 40*8*6mm, due to its small size, flat design, high accuracy, and wide capacity range, it can be easily installed inside small spaces in many IoT smart applications.

Rated load: 2kg 3kg 5kg
Precision: 0.05% FS
Safe overload:120%
Material: Alloy steel
Type: Full bridge support
Apply to: body scales, hand scales, kitchen scales,postal scales, fishing scales, baby body scales and other microelectronic weighing systems.

Additional information

Model	AM39A
Range	2kg 3kg 5kg
Creep	0.05%F.S/3min
Size	40106 mm
Sensitivity	1.0±0.15 MV/V
Cable	UL1571* AWG32 x 150 mm
Input/output resistance	1000±10Ω/1000±5Ω

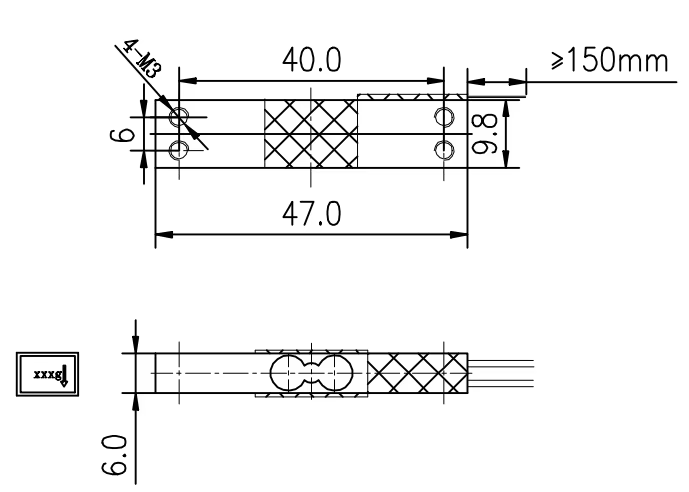

Drawing
