Description

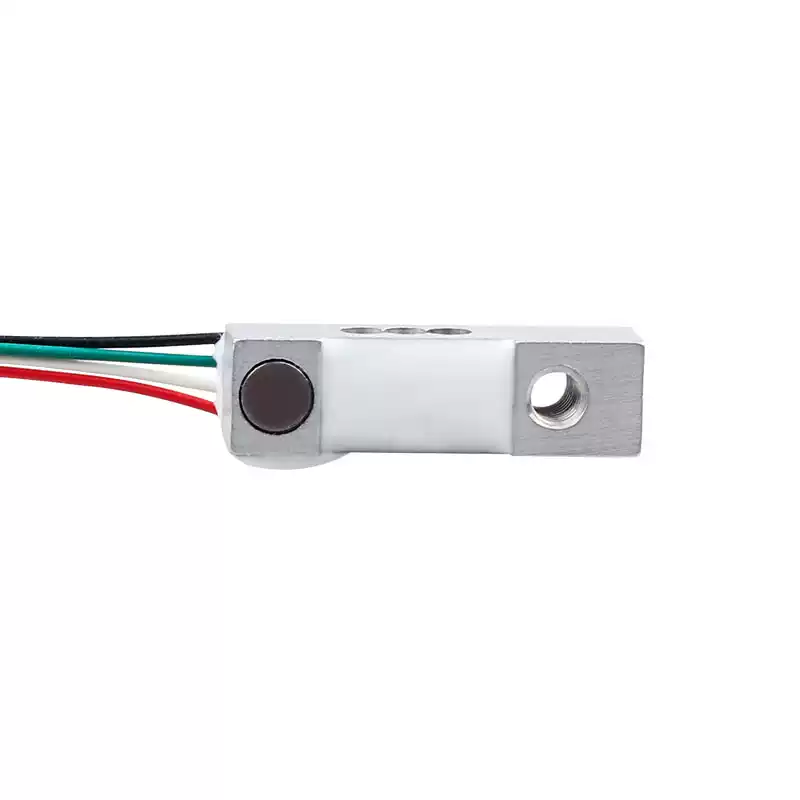

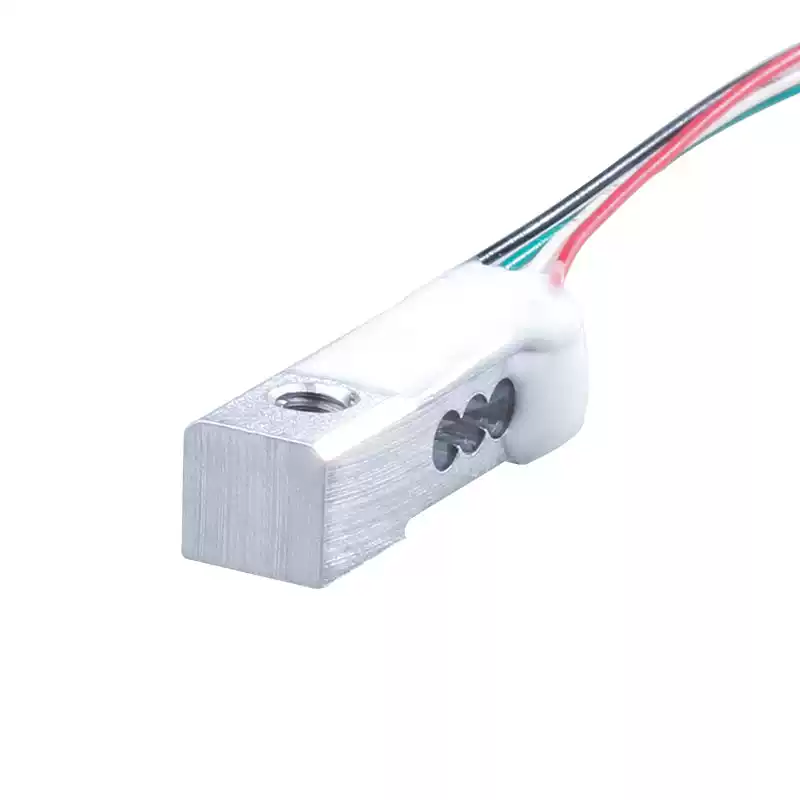

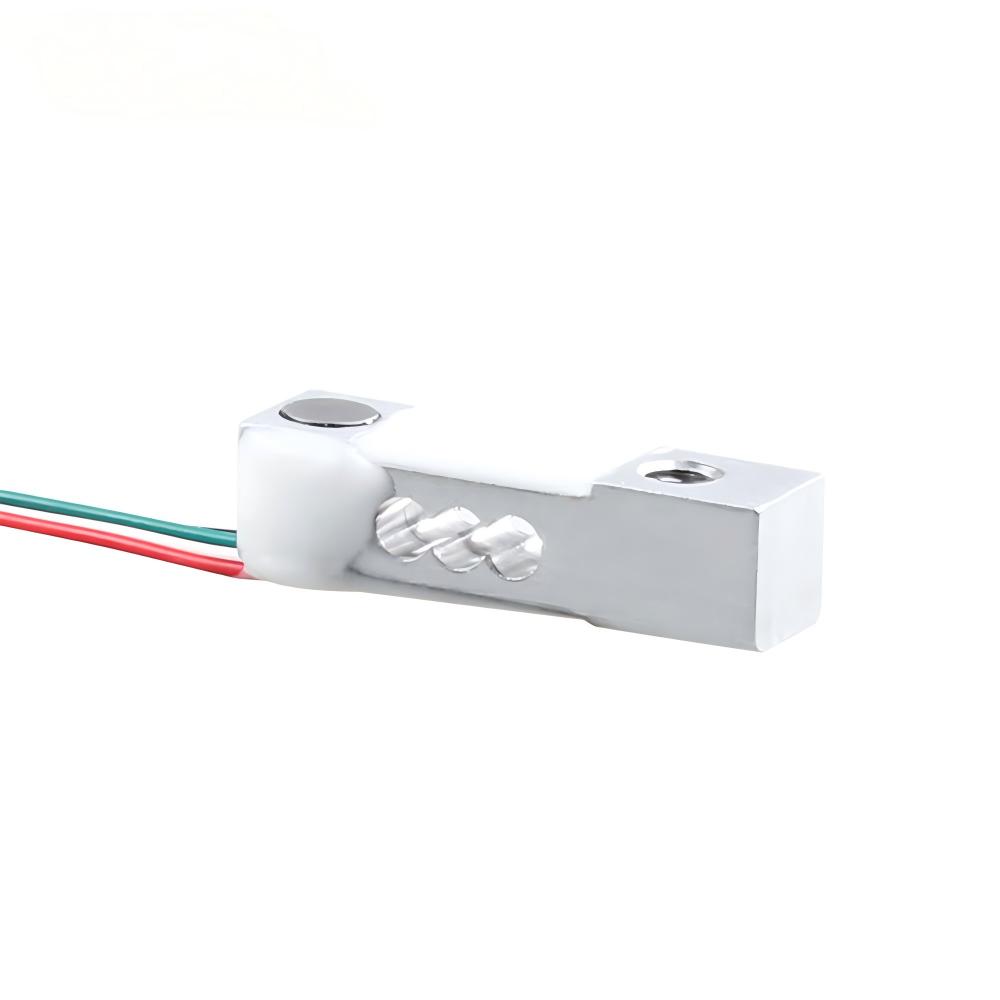

The AM34H is a miniature single point load cell with a rated capacity of 10kg. The material is made of high quality aluminum alloy. The rubber sealing process has adjusted the deviation of the four corners to ensure the accuracy of the measurement. It is suitable for infusion pumps, syringe pumps and other medical equipment, etc.
1. Capacities (kg): 10kg

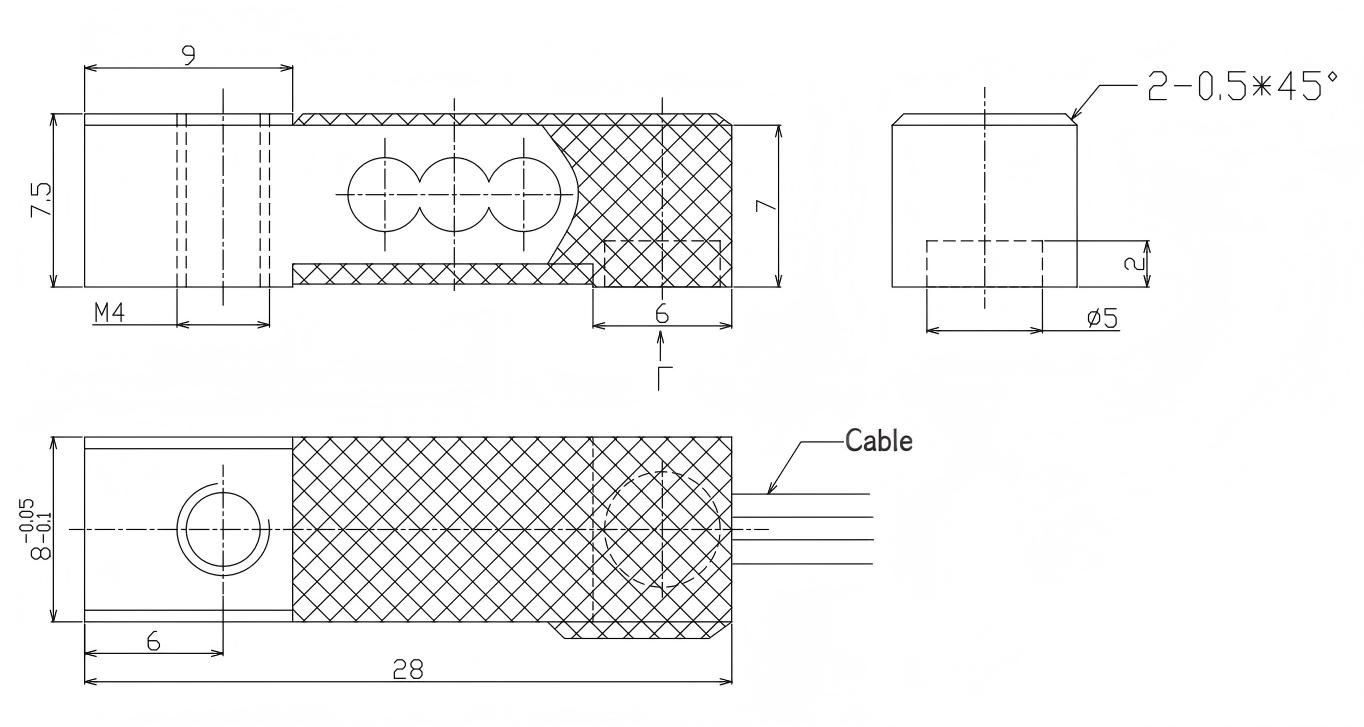

2. Small size, low range 28*8*7.5mm
3. Compact structure, easy to install
4. Anodized Aluminum Alloy
FAQ
What is a load cell used for in an infusion pump?
A load cell can monitor the weight change of a fluid container during infusion, providing an additional measurement method for fluid delivery and remaining-fluid monitoring.
How small is the AM34H?
The AM34H measures only 28 × 8 × 7.5 mm, making it suitable for compact equipment designs.
What is the capacity of the AM34H?
The standard AM34H has a 10 kg capacity.
What output does the AM34H provide?
The AM34H uses an mV/V analog Wheatstone bridge output and can be connected to suitable signal-conditioning or weighing electronics.
Can the AM34H be customized?
Yes. Amowellsensor supports OEM & ODM customization for dimensions, capacity, mounting structure, cables, connectors, and other application-specific requirements.
