Description

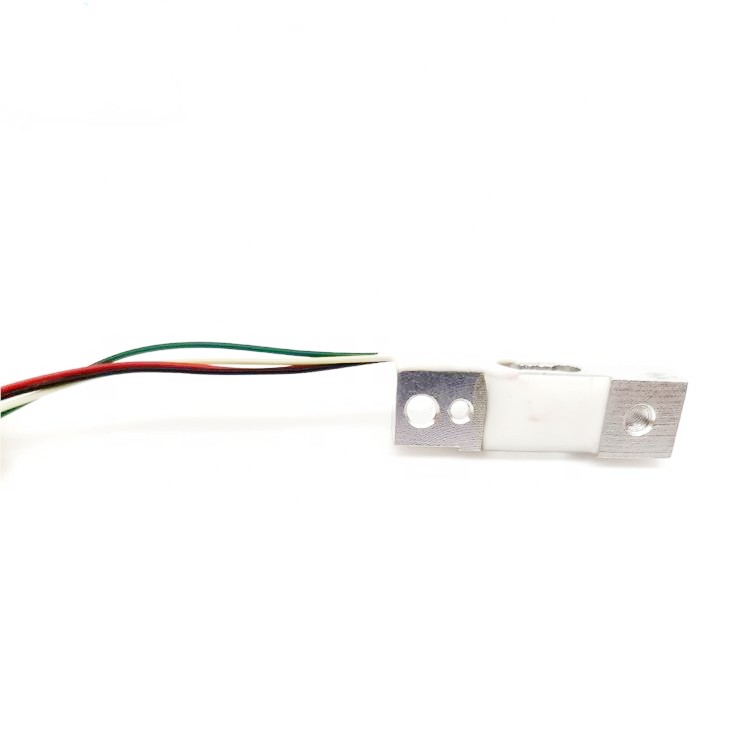

AM34A micro load cell is hot sales for smart cup, coffee machine, feeding-bottle and other liquid weighing machine. the capacity is 2kg. Accuracy is 0.1 %F·S. Size is 30×8.5×6 (4.8)mm, standard wire length is Φ0.65x 100mm.
AM34A micro load cell capacity is 2kg. Accuracy is 0.1 %F·S. Size is 30×8.5×6 (4.8)mm, standard wire length is Φ0.65x 100mm.
| Accuracy | ±0.1%F.S |
|---|---|
| Capacity | 2kg |
| Certificate | RoHS, CE |
| Creep | ±0.1%F·S/ 2min |
| Material | Aluminum alloy |
| Model | AM34A |
| Sensitivity | 0.7 ±0.2 mv/v |

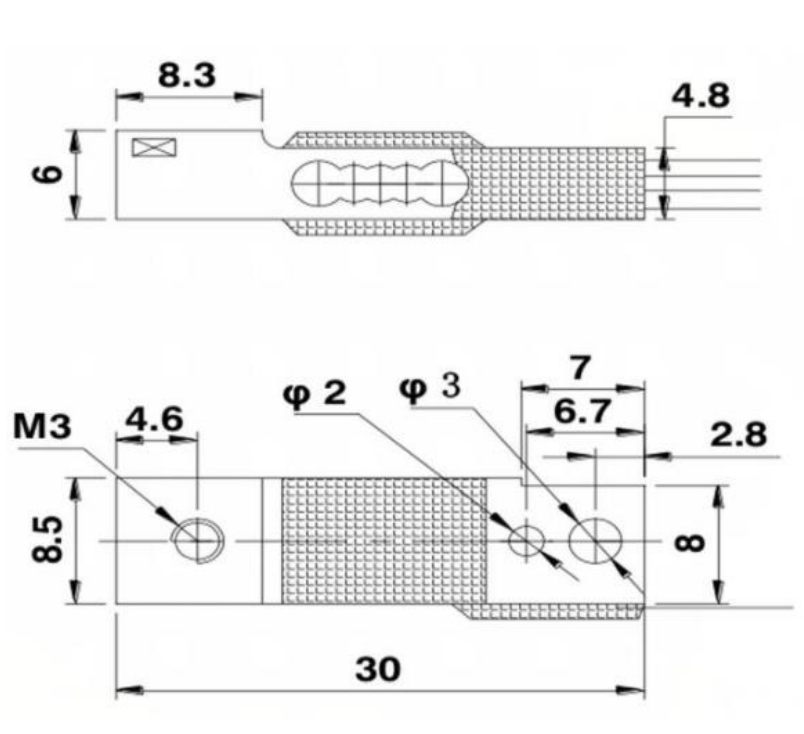

| Size | 30×8.5×6 (4.8)mm |
AM34A micro load cell is hot sales for smart cup, coffee machine, feeding-bottle and other liquid weighing machine. the capacity is 2kg. Accuracy is 0.1 %F·S. Size is 30×8.5×6 (4.8)mm, standard wire length is Φ0.65x 100mm.
| Accuracy | ±0.1%F.S |
|---|---|
| Capacity | 2kg |
| Certificate | RoHS, CE |
| Creep | ±0.1%F·S/ 2min |
| Material | Aluminum alloy |
| Model | AM34A |
| Sensitivity | 0.7 ±0.2 mv/v |
| Size | 30×8.5×6 (4.8)mm |
Contact us if you need the Datasheet PDF.
