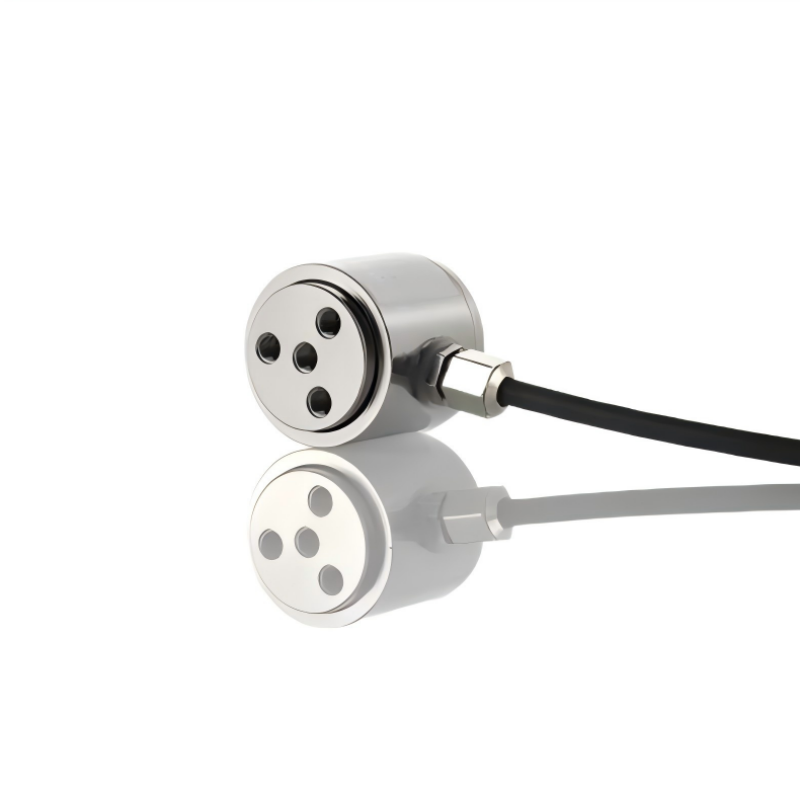

miniature load cell – AM43C

Dia20*H22mm compression and tension measurement Mini Force Sensor 20,50,100,200,300,500,1000,2000N

AM43C Dia20*H22mm compression and tension measurement Mini Force Sensor 20,50,100,200,300,500,1000,2000N

Additional information

Model	AM43C
Capacity	20, 50, 100, 200, 300, 500, 1000, 2000N
Size	φ20*H22mm
Creep	0.1%/30min
Material	Stainless steel
Sensitivity	2.0±10%mV/V
Certificate	RoHS, CE

Description

AM43C compression and tension force sensor 20N~2000N

1.Stainless Steel;
2. Low profile, compact and strong structure;
3. High-frequency dynamic response;
4. Mainly used for the measurement of push and pull, injection molding and mold industry, robot grabbing, press-in, pull pressure detection and control, and automobile assembly force value detection.

Additional information

Model	AM43C
Capacity	20, 50, 100, 200, 300, 500, 1000, 2000N
Size	φ20*H22mm
Creep	0.1%/30min
Material	Stainless steel
Sensitivity	2.0±10%mV/V
Certificate	RoHS, CE

Drawing
