Small size half bridge load cell 50kg, 30*25*2.5mm
| Model | AM24C |
|---|---|
| Accuracy | ±0.1%F.S |
| Capacity | 50kg |
| Creep | ±0.1%F.S/3min |
| Material | manganese steel |
| Size | 30*25*2.5mm |

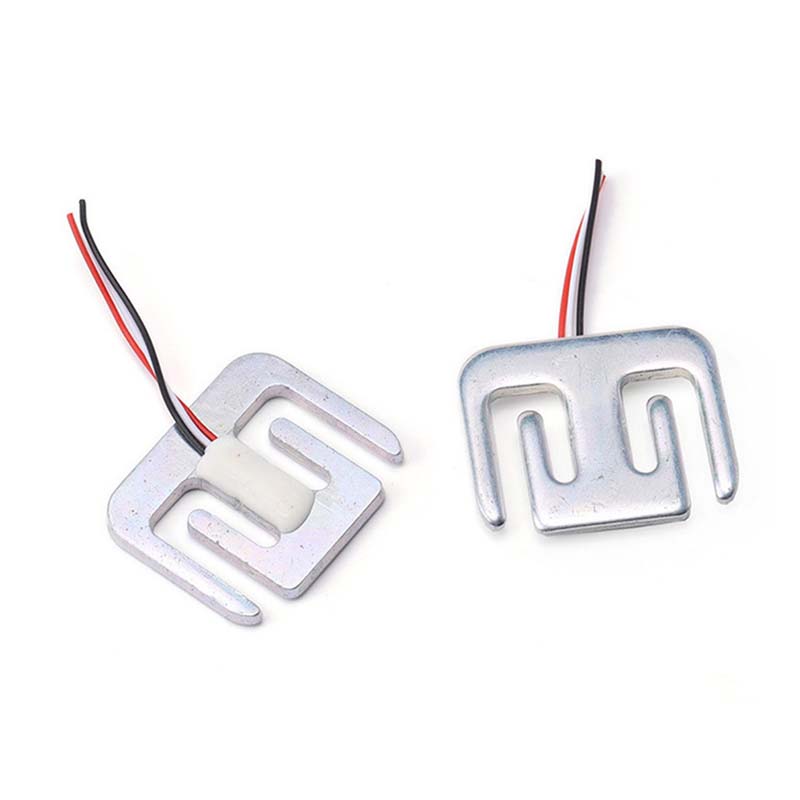

AM24C is a half bridge load cell, this kind of load cell is composed of manganese steel beam, resistance strain gauge and wire. This load cell 50kg is usually used in groups of four. Due to its smaller size and open design, it is widely used in various small electronic scales and small weighing products.
Application:
Body scale
Automatic litter box
Smart pet house
| Model | AM24C |
|---|---|
| Accuracy | ±0.1%F.S |
| Capacity | 50kg |
| Creep | ±0.1%F.S/3min |
| Material | manganese steel |
| Size | 30*25*2.5mm |
Contact us if you need the Datasheet PDF.
