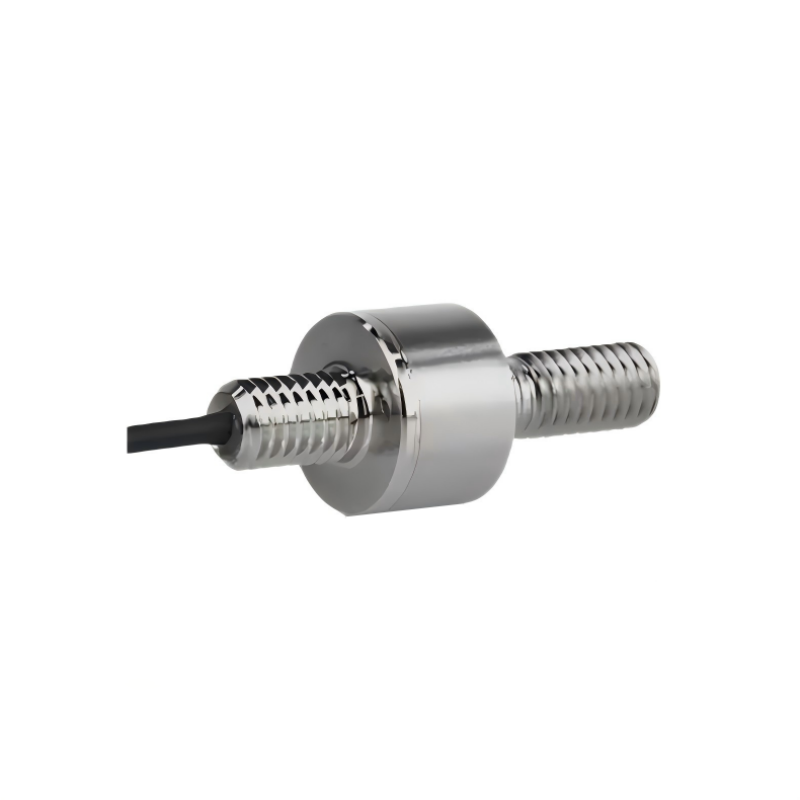

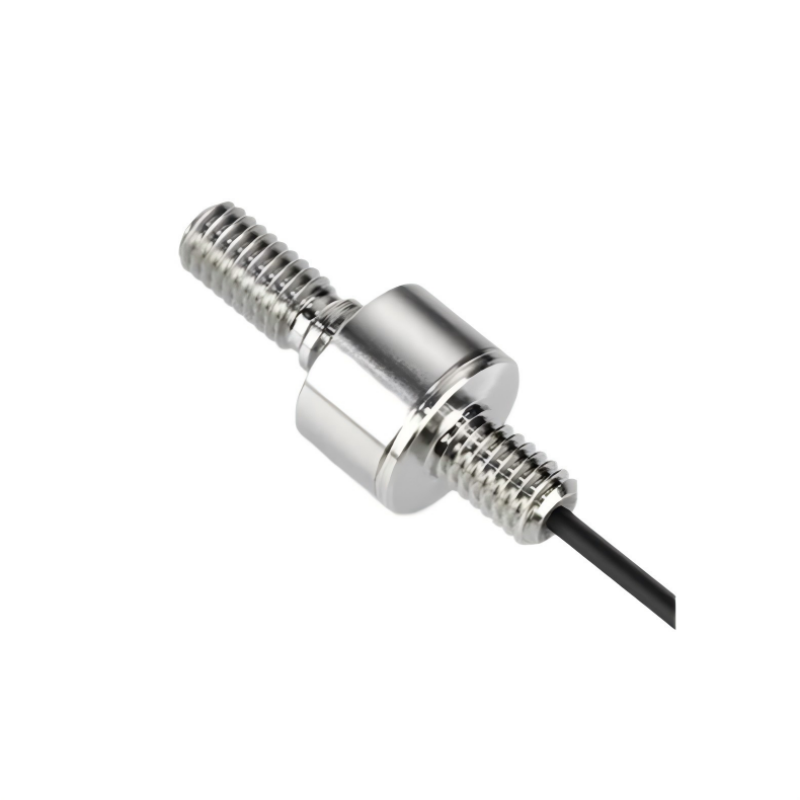

miniature load cell – AM42B

compression and tension force sensor 20N~5KN

AM42B Dia13*H33mm Micro Miniature M6 M8 Load Cell Cells Mini Force Sensor 10,100,150,200,300,500N,1,2,3,4,5KN

Additional information

Model	AM42B
Capacity	20, 50, 100, 150, 200, 300, 500N, 1, 2,3, 4, 5KN
Size	φ13*H33mm
Creep	0.5%/30min
Material	Stainless steel
Sensitivity	2.0±20%mV/V
Certificate	RoHS, CE
Accuracy	≤±0.5%F.S

Description

AM42B compression and tension force sensor 20N~5KN

1. Stainless Steel;
2. Low profile and compact structure;
3. It is suitable for a variety of small space force measurement, are widely used in measurement control in industrial, research and development fields.

Additional information

Model	AM42B
Capacity	20, 50, 100, 150, 200, 300, 500N, 1, 2,3, 4, 5KN
Size	φ13*H33mm
Creep	0.5%/30min
Material	Stainless steel
Sensitivity	2.0±20%mV/V
Certificate	RoHS, CE
Accuracy	≤±0.5%F.S
